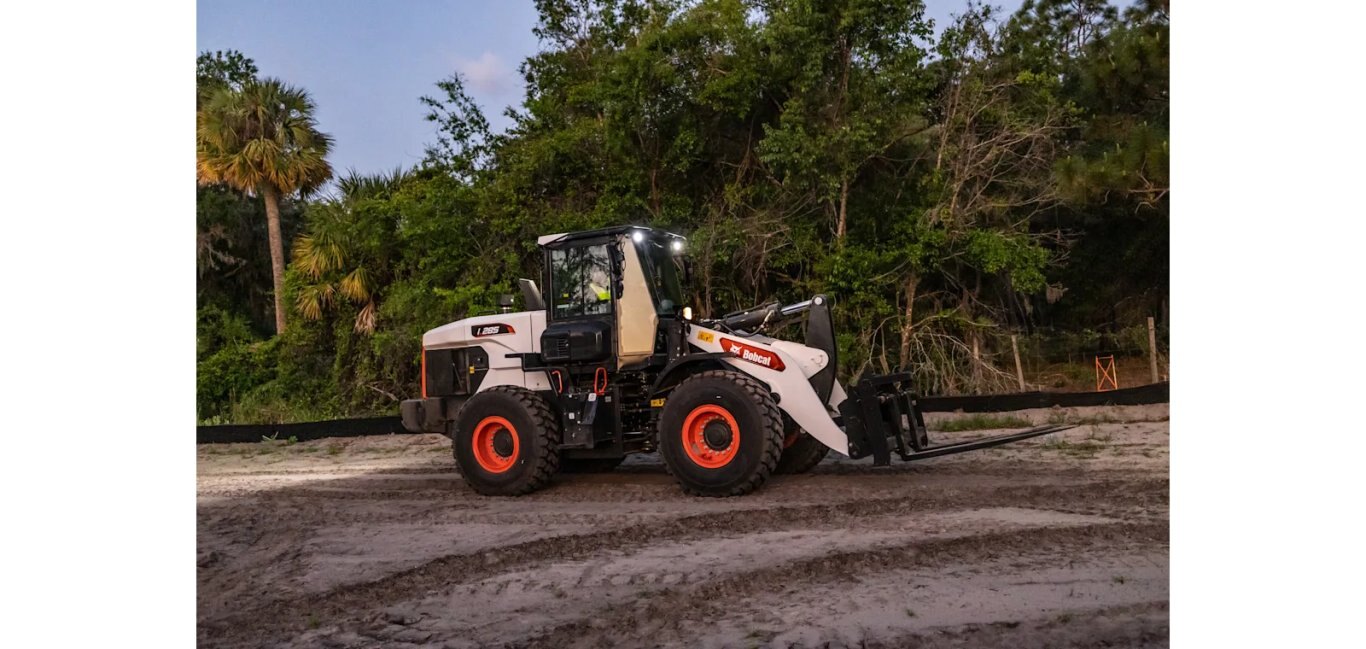

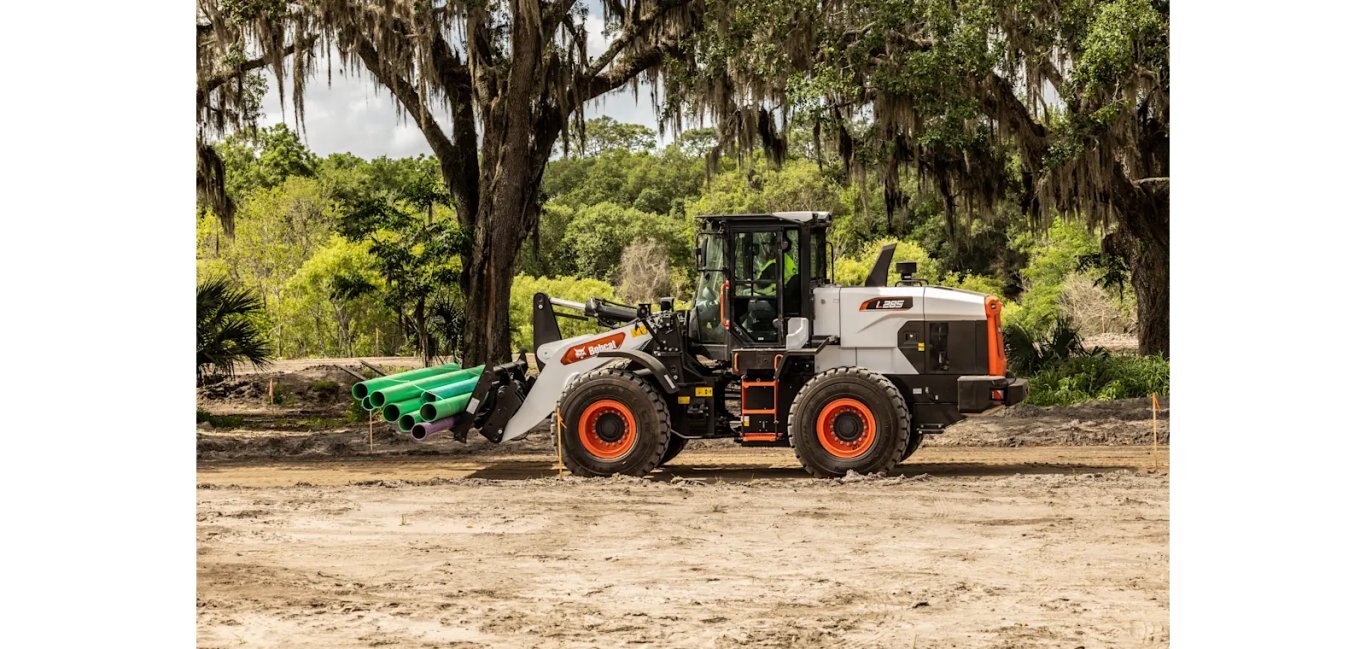

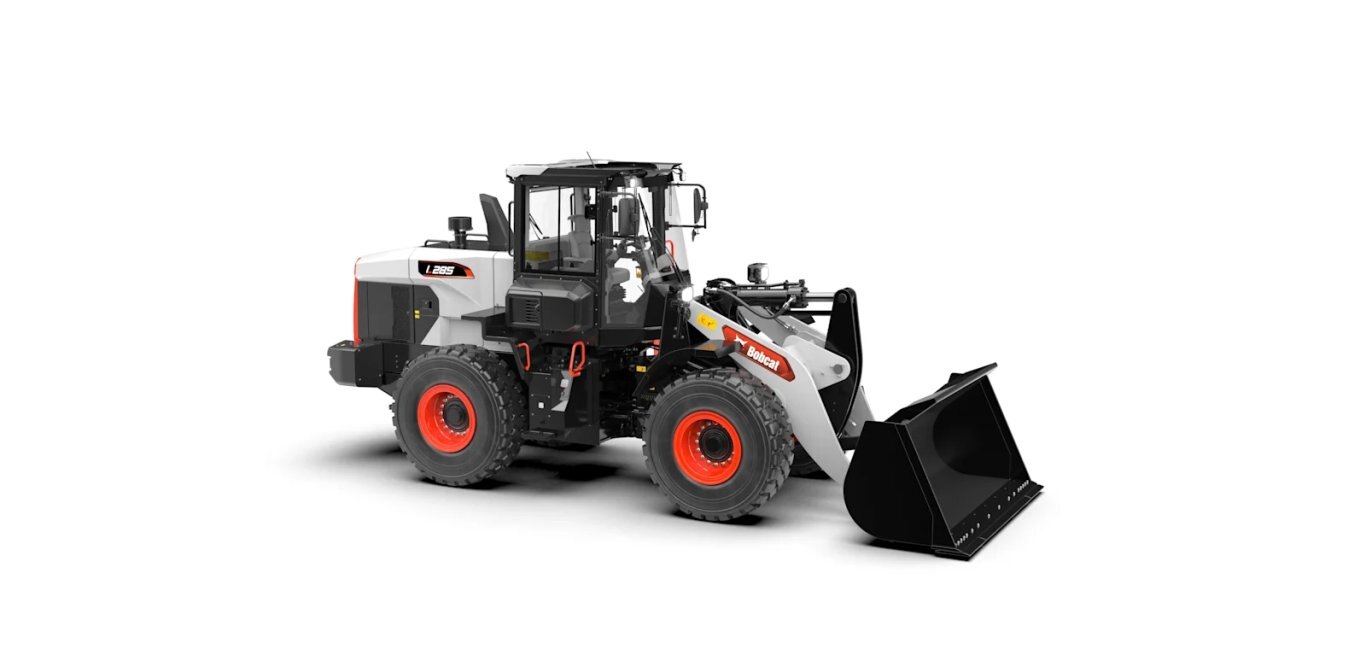

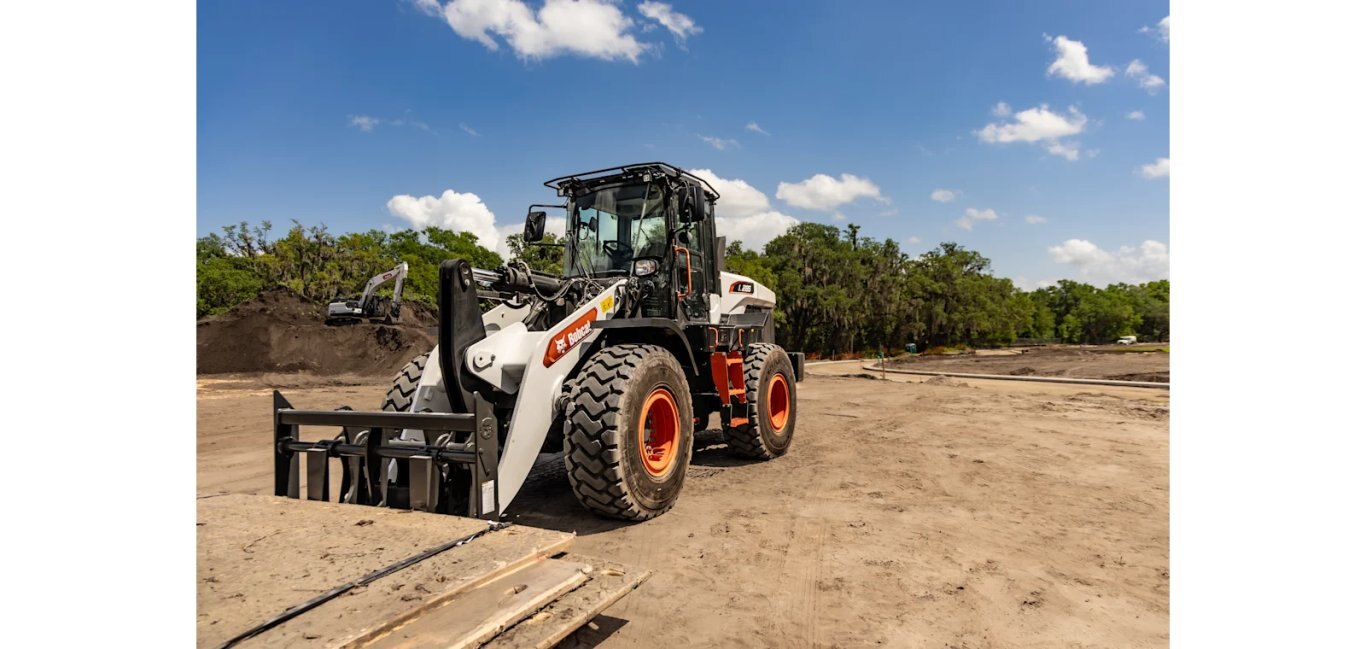

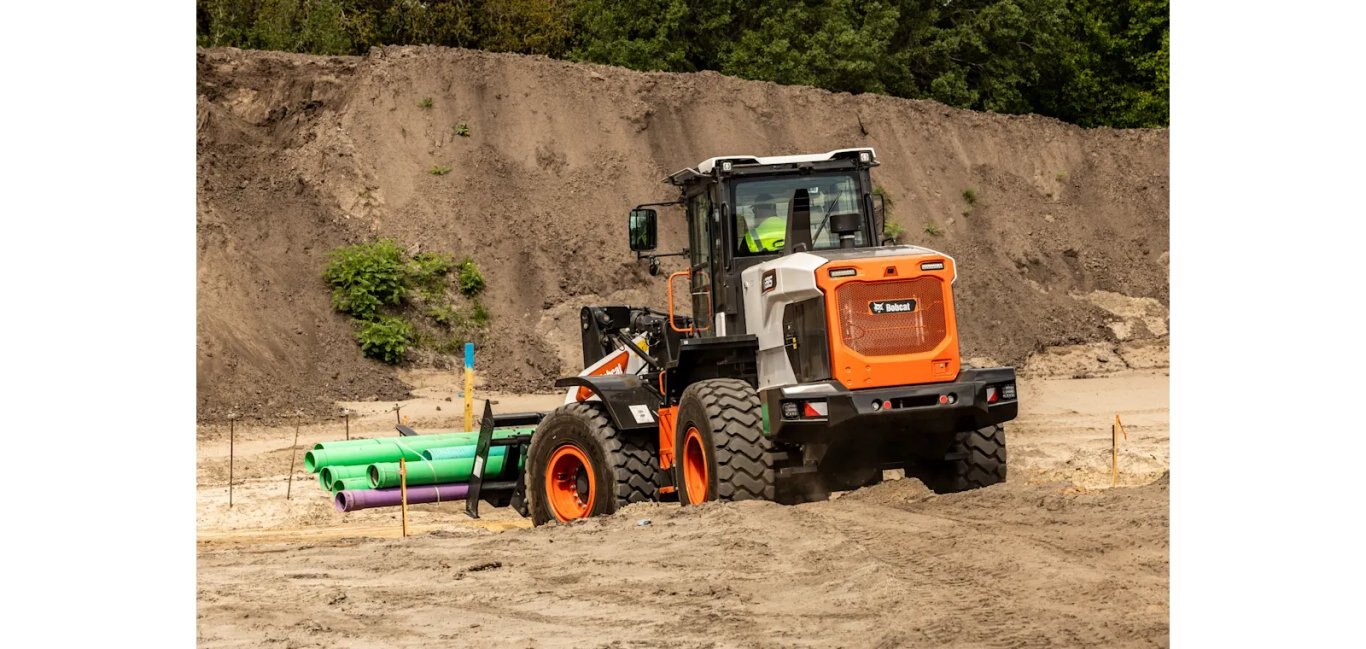

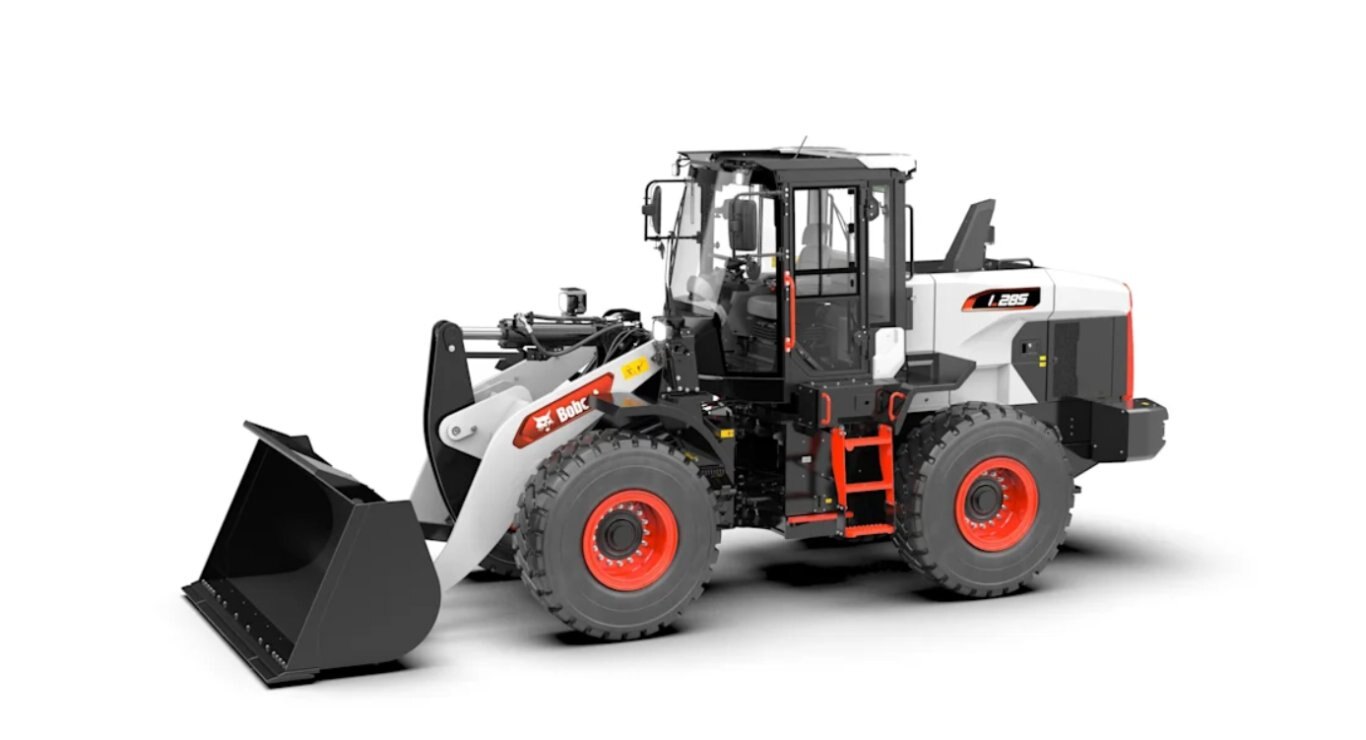

Bobcat L285 Large Wheel Loader

  • Bobcat L285 Large Wheel Loader
  • Bobcat L285 Large Wheel Loader
  • Bobcat L285 Large Wheel Loader
  • Bobcat L285 Large Wheel Loader
  • Bobcat L285 Large Wheel Loader
  • Bobcat L285 Large Wheel Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Large Wheel Loader

The Bobcat® L285 large wheel loader provides top-of-the-line lifting capability and smooth, efficient control with spacious operator comfort to help you outlast the biggest material handling jobs.

  • Three power modes
  • 8-inch touch display
  • 3-year/5,000-hour standard warranty
  • 189 hp non-DPF engine
  • 3.5 yd3 bucket capacity
  • Three transmission modes help you fine-tune performance to match changing jobsite conditions
  • A 3-year/5,000-hour full-coverage warranty backs Bobcat quality and durability with extra peace of mind
  • Joystick controls offer smooth, push-button direction changes, with no need to take your hands off the controls
Specifications
Model
L285
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
l285 key specifications
Horsepower
189 hp
Operating Weight
34487 lbs
engine
Horsepower
189 hp
performance
Operating Weight
34487 lbs
Bucket Capacities
3.5-5.5 yd3 (2.6-4.2 m3)
Max. Travel Speed – Forward
22.1 mph
Max. Travel Speed – Reverse
15 mph
Tipping Capacity With Bucket (Straight)
27364 lbs
Tipping Capacity With Bucket (Articulated)
24121 lbs
Rated Operating Capacity With Forks (Straight)
8251 lbs
Rated Operating Capacity With Bucket (Straight)
27364 lbs
Rated Operating Capacity With Forks (Articulated)
7170 lbs
Rated Operating Capacity With Bucket (Articulated)
24121 lbs
capacities
Fuel Tank
62.1 gal
Diesel Exhaust Fluid (DEF) Capacity
7.9 gal
hydraulic system
3rd Spool Pressure
4351 psi
Main Pump Pressure
3844 psi
3rd Spool Max. Flow Rate
66 gpm
Main Pump Max. Flow Rate
64.9 gpm
dimensions
Tire Size
20.5R25 L3
Wheelbase
120 in
Wheel Tread
80.3 in
Rollback Angle
49 deg
Ground Clearance
17 in
Articulation Angle
40 deg
Width (over Tires)
103.9 in
Width (with Bucket)
107.9 in
Outside Turning Radius
216.9 in
Height With Operator Cab
132.2 in
Length Without Attachment
260.6 in
Height To Bucket Hinge Pin
155.5 in
Dump Angle @ Maximum Height
46 deg
Length With Standard Bucket
315 in
Inside Turning Radius With Bucket
243.8 in
drive system
Main Drive
Power Shift 4F/4R
literature
Name Link
Download Brochure Download
