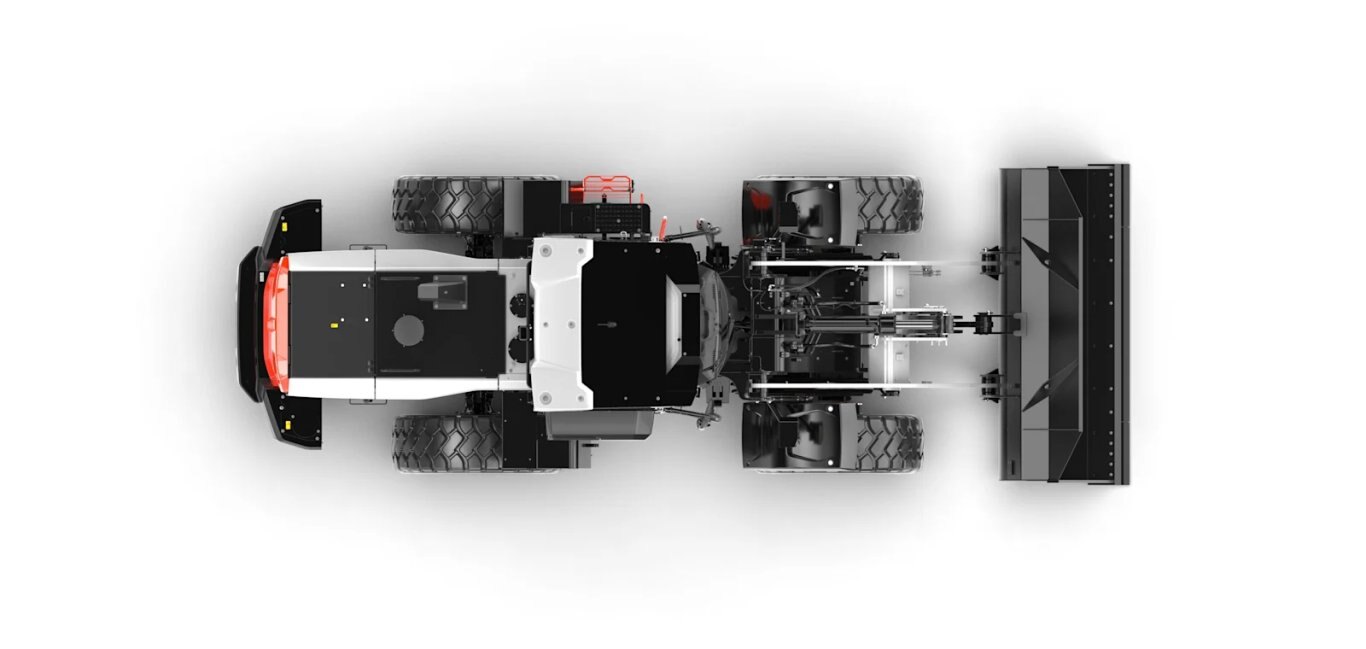

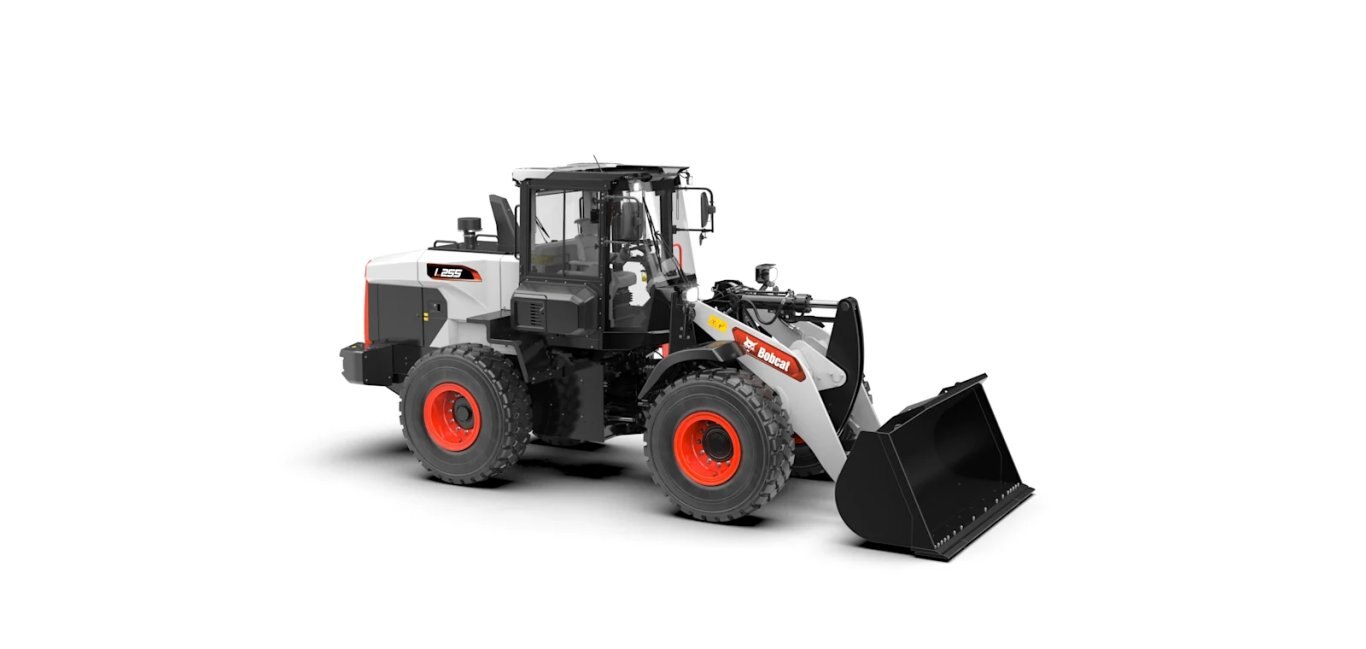

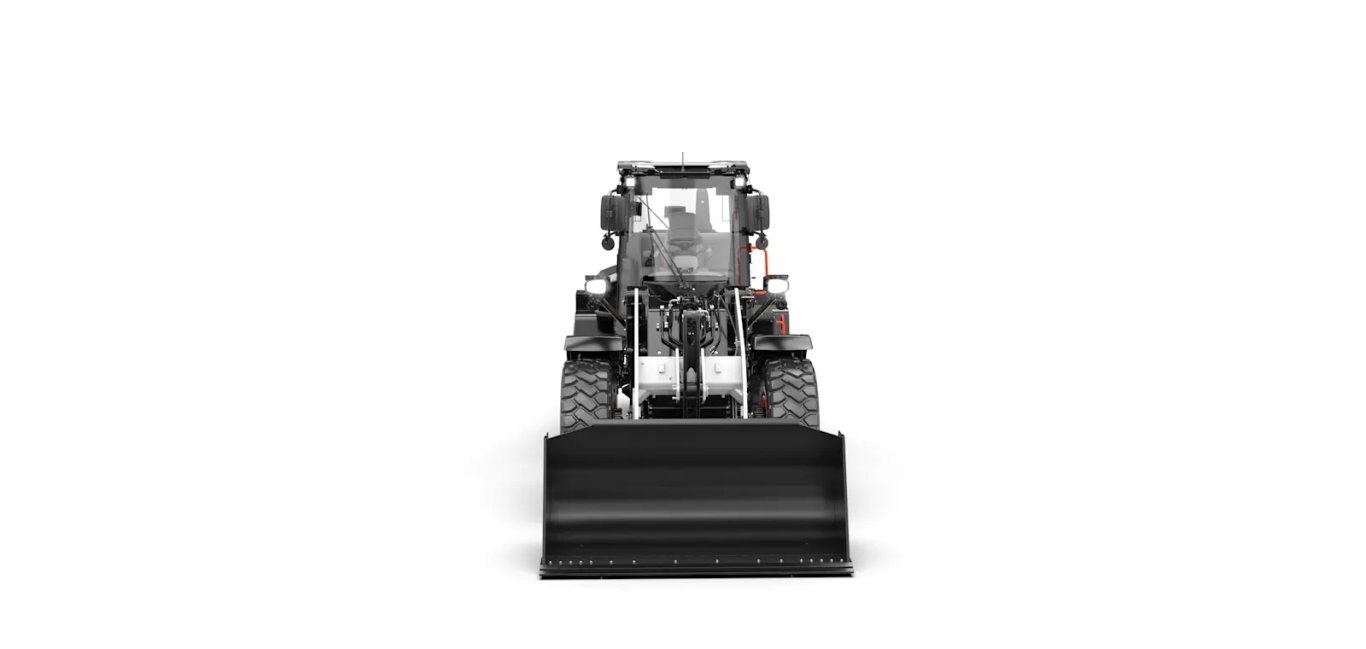

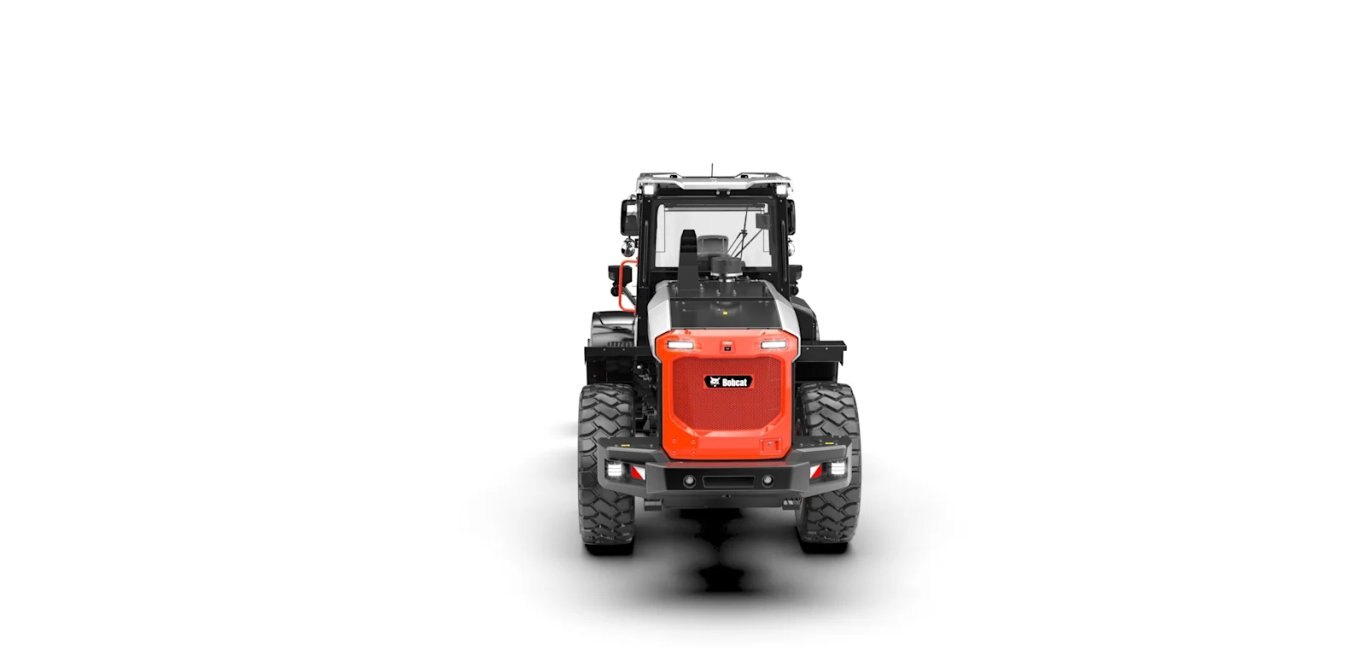

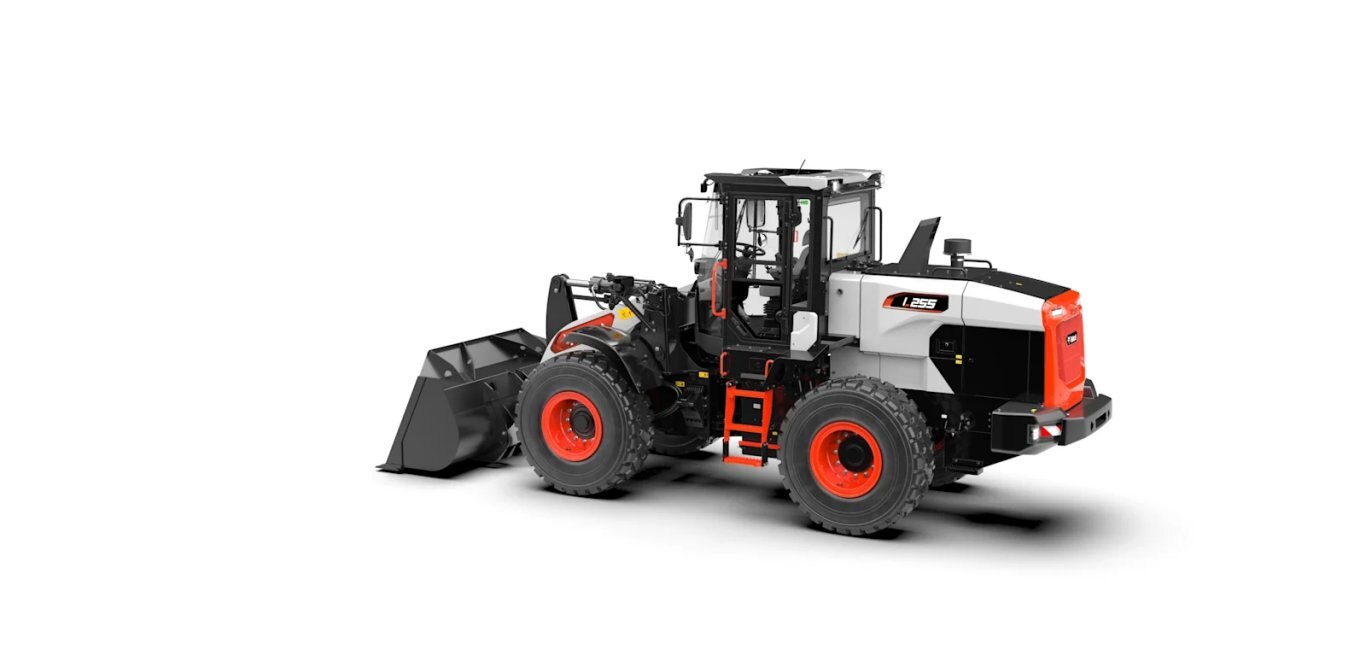

Bobcat L255 Large Wheel Loader

  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
  • Bobcat L255 Large Wheel Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Large Wheel Loader

The Bobcat® L255 large wheel loader helps you scale up to major material handling jobs with high-volume lift capabilities, impressive fuel efficiency and unmatched operator comfort.

  • Powershift transmission with three modes
  • Spacious cab and intuitive controls
  • Quick coupler ready
  • Rated operating capacity up to 12,420 pounds
  • 3-year/5,000-hour standard warranty
  • The L255 large wheel loader’s high capacity, heavy-duty lift capability and tough axles help you move big loads fast
  • Three power modes – power, normal and economy – give you tailored performance for whatever the job demands, from maximum power to greater fuel efficiency
  • An 8-inch touch display, included standard, provides easy access to operation and performance information, along with settings, heat and air conditioning control, rear view camera, and more
Specifications
Model
L255
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
l255 key specifications
Horsepower
172 hp
Operating Weight
30903 lbs
engine
Horsepower
172 hp
performance
Operating Weight
30903 lbs
Bucket Capacities
3.5-5.0 yd3 (2.6-3.8 m3)
Max. Travel Speed – Forward
23.3 mph
Max. Travel Speed – Reverse
14.9 mph
Tipping Capacity With Bucket (Straight)
24839 lbs
Tipping Capacity With Bucket (Articulated)
21894 lbs
Rated Operating Capacity With Forks (Straight)
7577 lbs
Rated Operating Capacity With Bucket (Straight)
12420 lbs
Rated Operating Capacity With Forks (Articulated)
6582 lbs
Rated Operating Capacity With Bucket (Articulated)
10947 lbs
capacities
Fuel Tank
62.1 gal
Diesel Exhaust Fluid (DEF) Capacity
7.9 gal
hydraulic system
3rd Spool Pressure
4351 psi
Main Pump Pressure
3844 psi
3rd Spool Max. Flow Rate
40.9 gpm
Main Pump Max. Flow Rate
40.9 gpm
dimensions
Tire Size
20.5R25 L3
Wheelbase
120 in
Wheel Tread
80.3 in
Rollback Angle
48 deg
Ground Clearance
17 in
Articulation Angle
40 deg
Width (over Tires)
101 in
Width (with Bucket)
107.9 in
Outside Turning Radius
216.8 in
Height With Operator Cab
130.3 in
Length Without Attachment
256.6 in
Height To Bucket Hinge Pin
151.5 in
Dump Angle @ Maximum Height
48 deg
Length With Standard Bucket
311 in
Inside Turning Radius With Bucket
240.3 in
drive system
Main Drive
Power Shift 4F/4R
