ID # 53059976

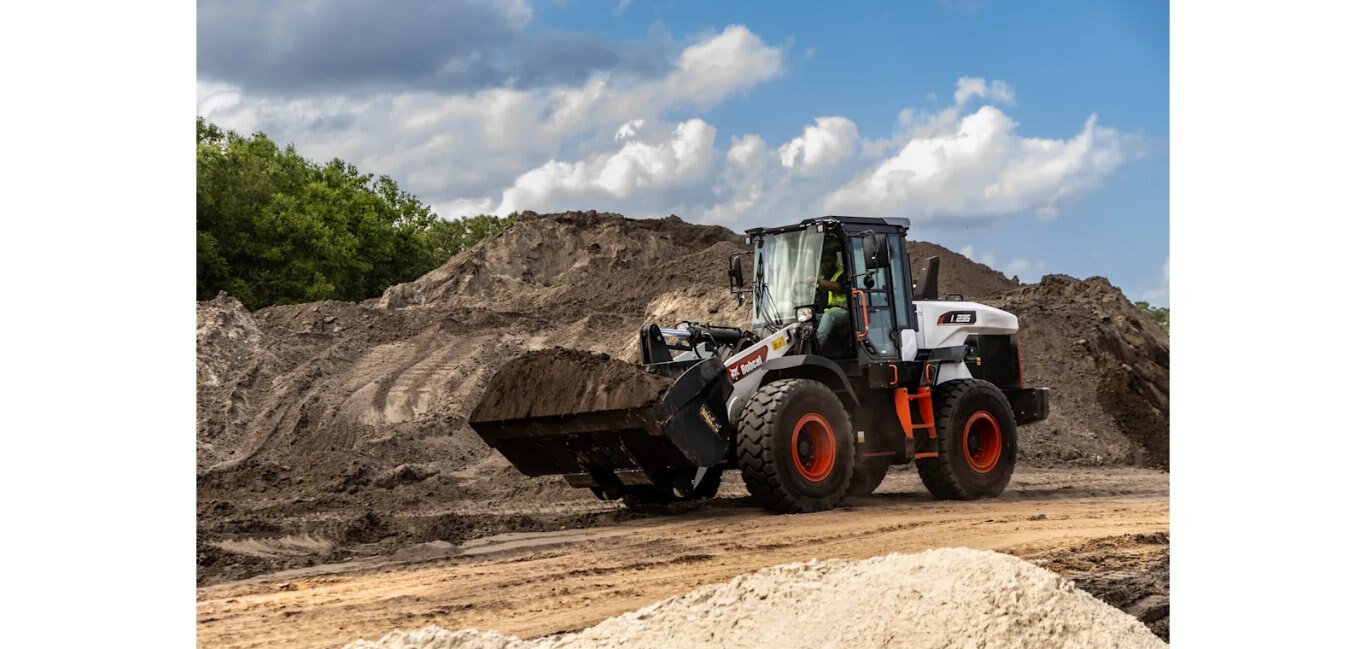

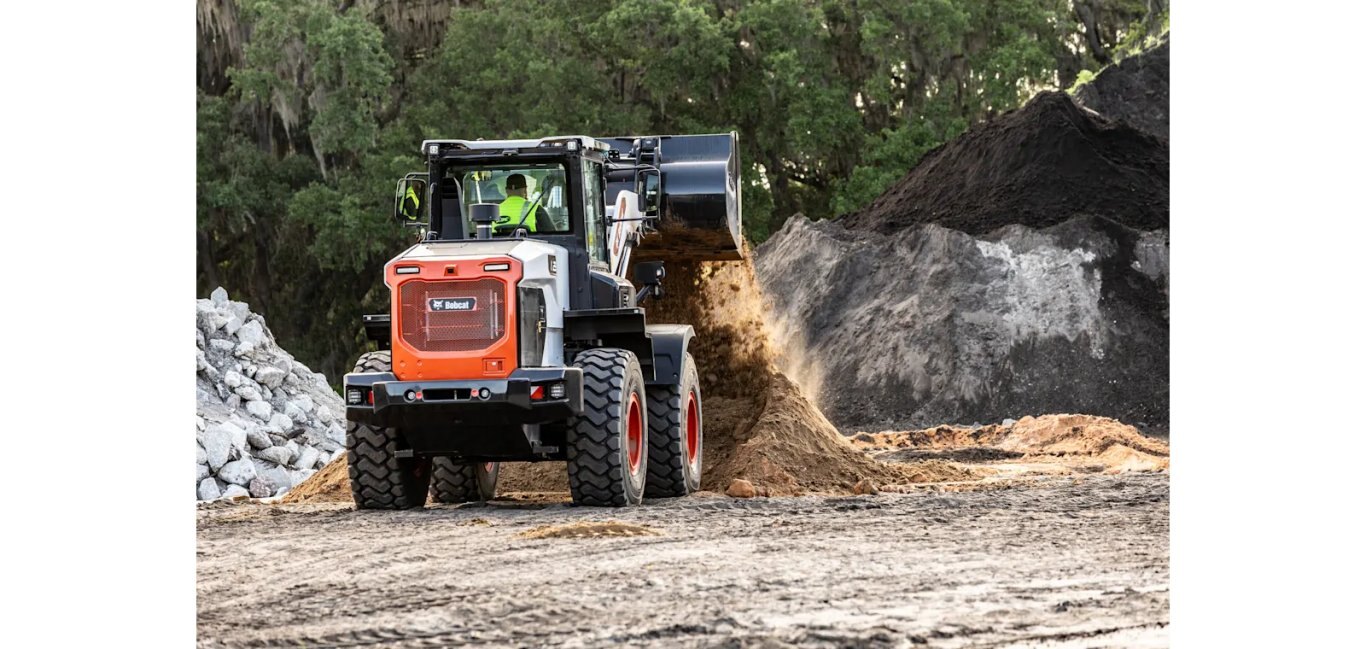

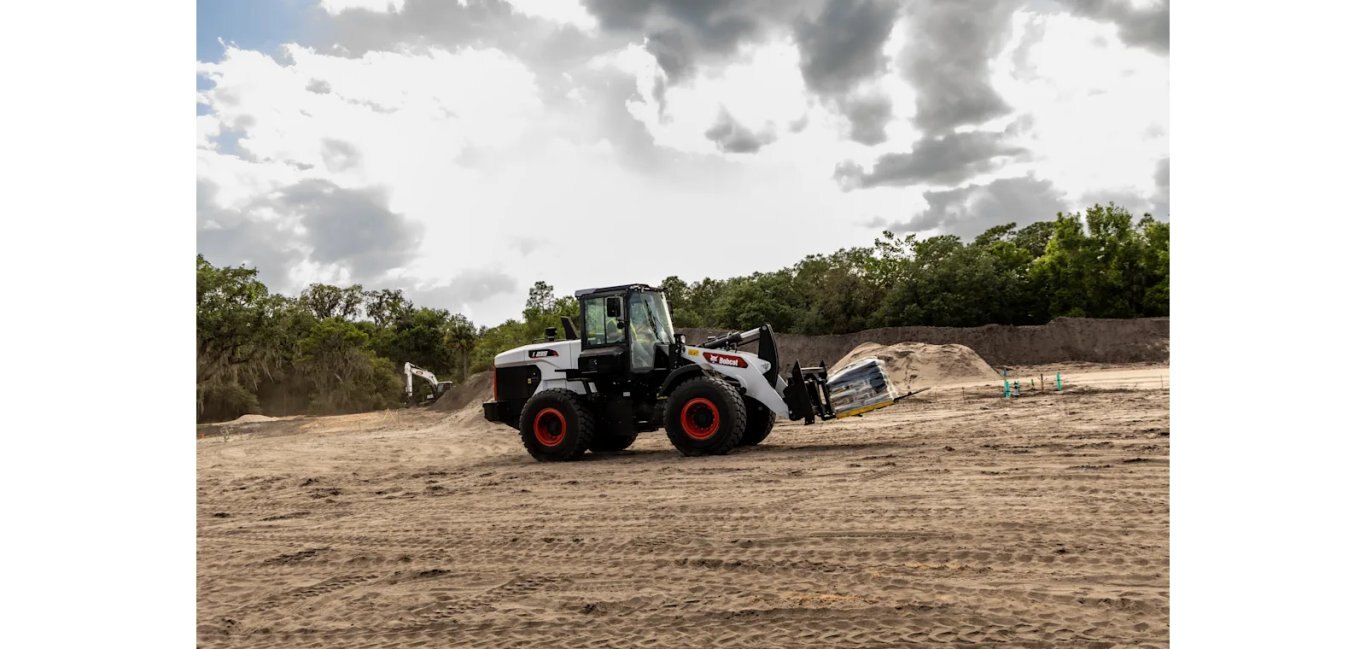

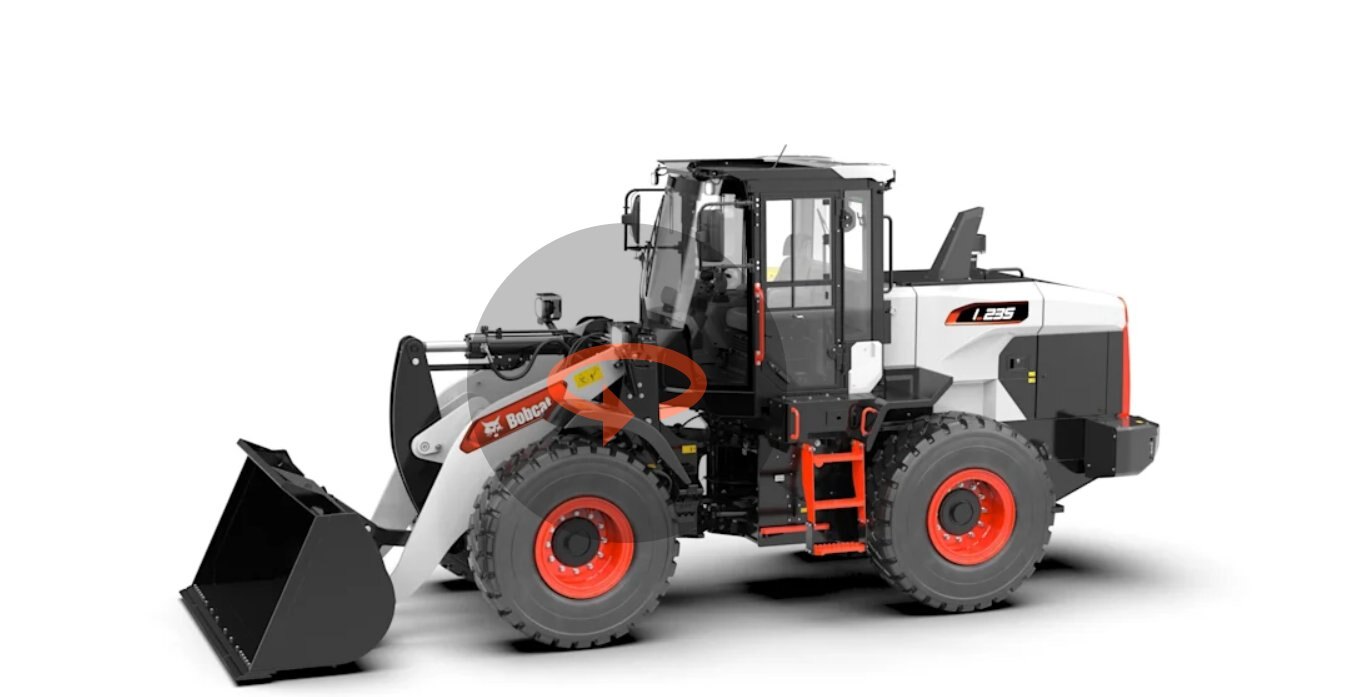

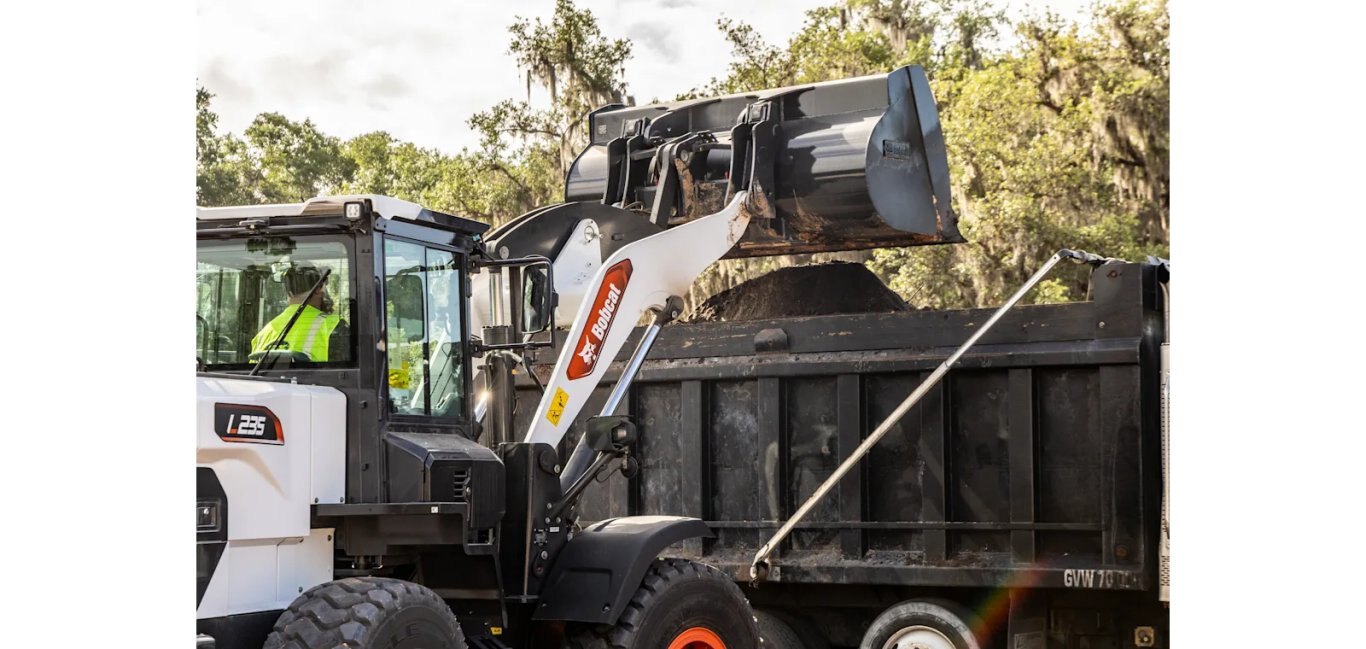

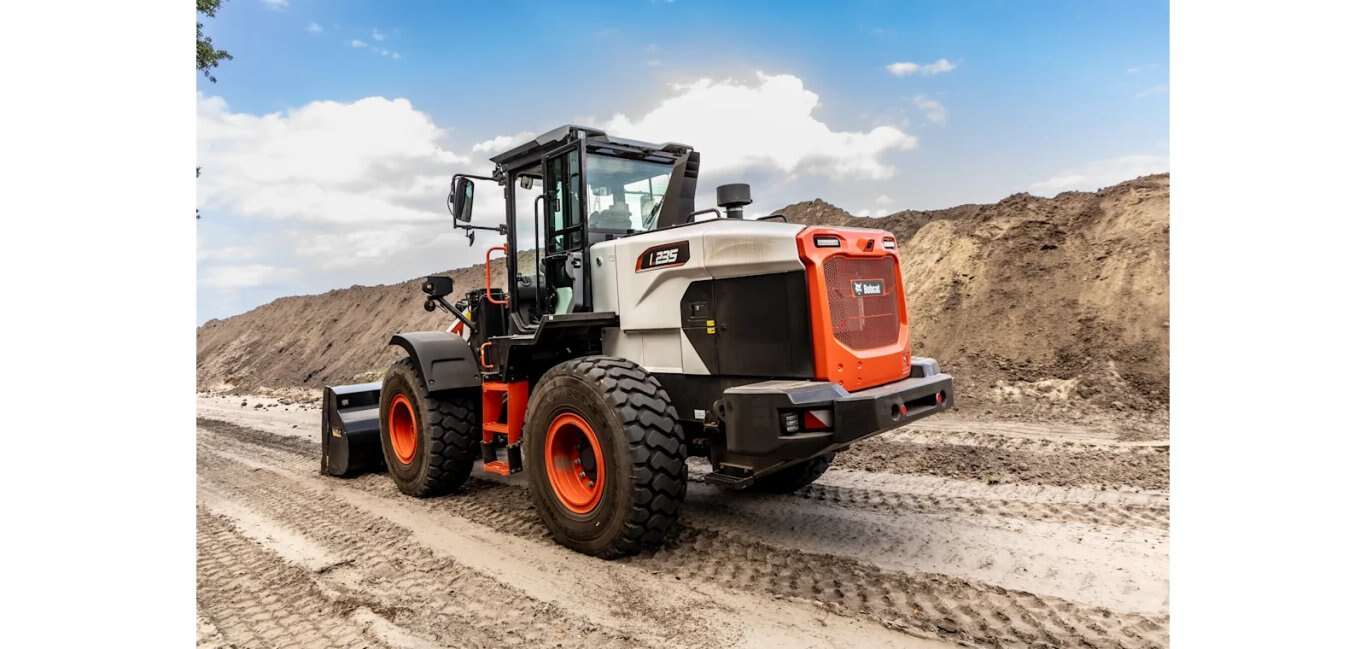

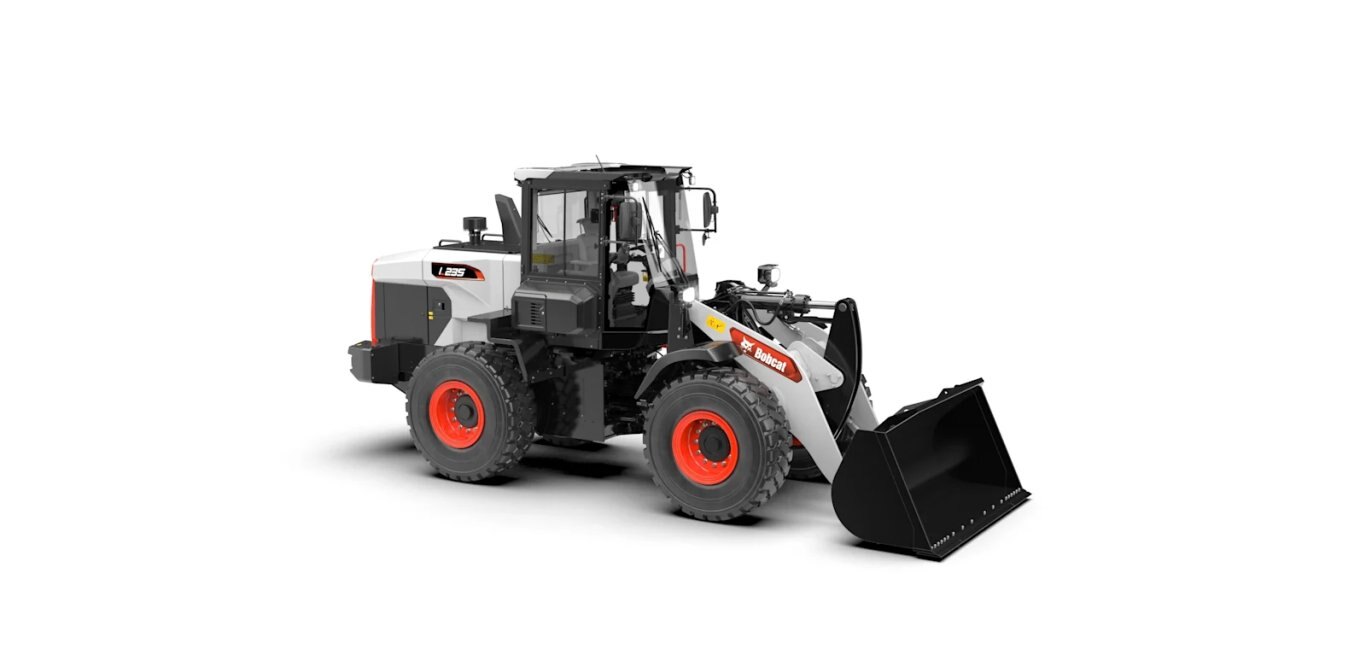

Bobcat L235 Large Wheel Loader

  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
  • Bobcat L235 Large Wheel Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Large Wheel Loader

The Bobcat® L235 large wheel loader combines powerful lift performance, fuel-efficient operation and premium comfort to confidently tackle big, high-volume material handling jobs.

  • Massive breakout forces and bucket capacity
  • 159 hp non-DPF engine
  • Three power modes
  • Spacious cab and intuitive controls
  • Backed by 3-year/5,000-hour full-coverage warranty
  • Move more material efficiently thanks to a large bucket capacity and durable, heavy-duty axles
  • Non-DPF engine minimizes downtime from regeneration and reduces long-term maintenance costs
  • Three powerful transmission modes customize speed control and performance for unique working conditions
Specifications
Model
L235
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
l235 key specifications
Horsepower
159 hp
Operating Weight
29488 lbs
engine
Horsepower
159 hp
performance
Operating Weight
29488 lbs
Bucket Capacities
3.0-4.5 yd3 (2.2-3.4 m3)
Max. Travel Speed – Forward
24.2 mph
Max. Travel Speed – Reverse
18.6 mph
Tipping Capacity With Bucket (Straight)
23853 lbs
Tipping Capacity With Bucket (Articulated)
21025 lbs
Rated Operating Capacity With Forks (Straight)
7249 lbs
Rated Operating Capacity With Bucket (Straight)
11926 lbs
Rated Operating Capacity With Forks (Articulated)
6292 lbs
Rated Operating Capacity With Bucket (Articulated)
10512 lbs
capacities
Fuel Tank
62.1 gal
Diesel Exhaust Fluid (DEF) Capacity
7.9 gal
hydraulic system
3rd Spool Pressure
4061 psi
Main Pump Pressure
3626 psi
3rd Spool Max. Flow Rate
40.9 gpm
Main Pump Max. Flow Rate
40.9 gpm
dimensions
Tire Size
20.5R25 L3
Wheelbase
120 in
Wheel Tread
75.9 in
Rollback Angle
48 deg
Ground Clearance
17 in
Articulation Angle
40 deg
Width (over Tires)
98.4 in
Width (with Bucket)
100.4 in
Outside Turning Radius
212.7 in
Height With Operator Cab
130.3 in
Length Without Attachment
256.6 in
Height To Bucket Hinge Pin
151.5 in
Dump Angle @ Maximum Height
48 deg
Length With Standard Bucket
307.6 in
Inside Turning Radius With Bucket
236.4 in
drive system
Main Drive
Power Shift 4F/4R
literature
Name Link
Download Brochure Download
