ID # 53059975

Bobcat L205 Large Wheel Loader

  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
  • Bobcat L205 Large Wheel Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Large Wheel Loader

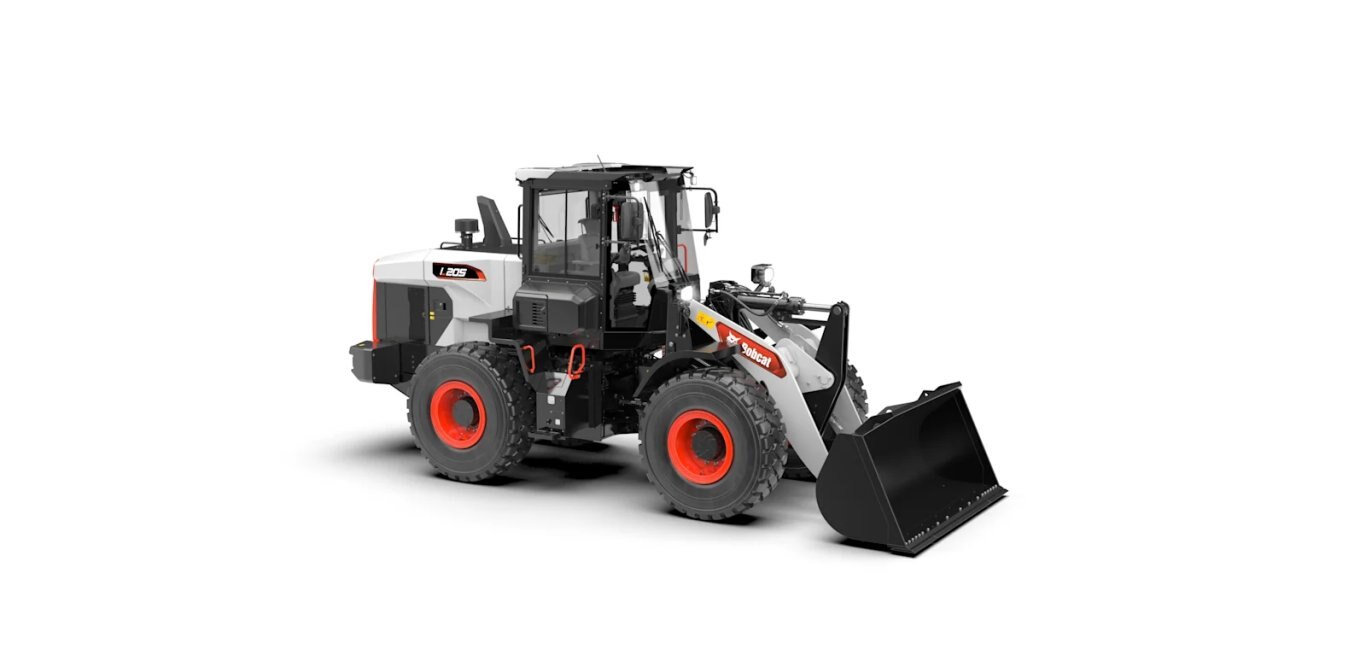

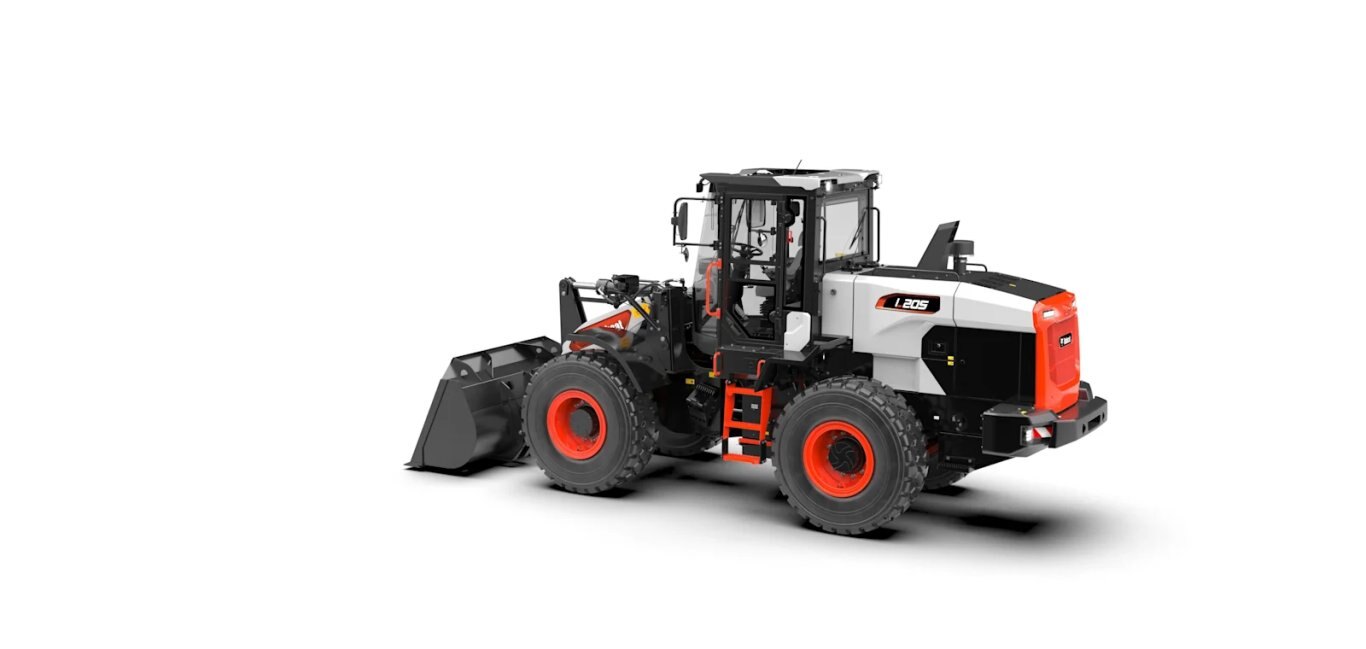

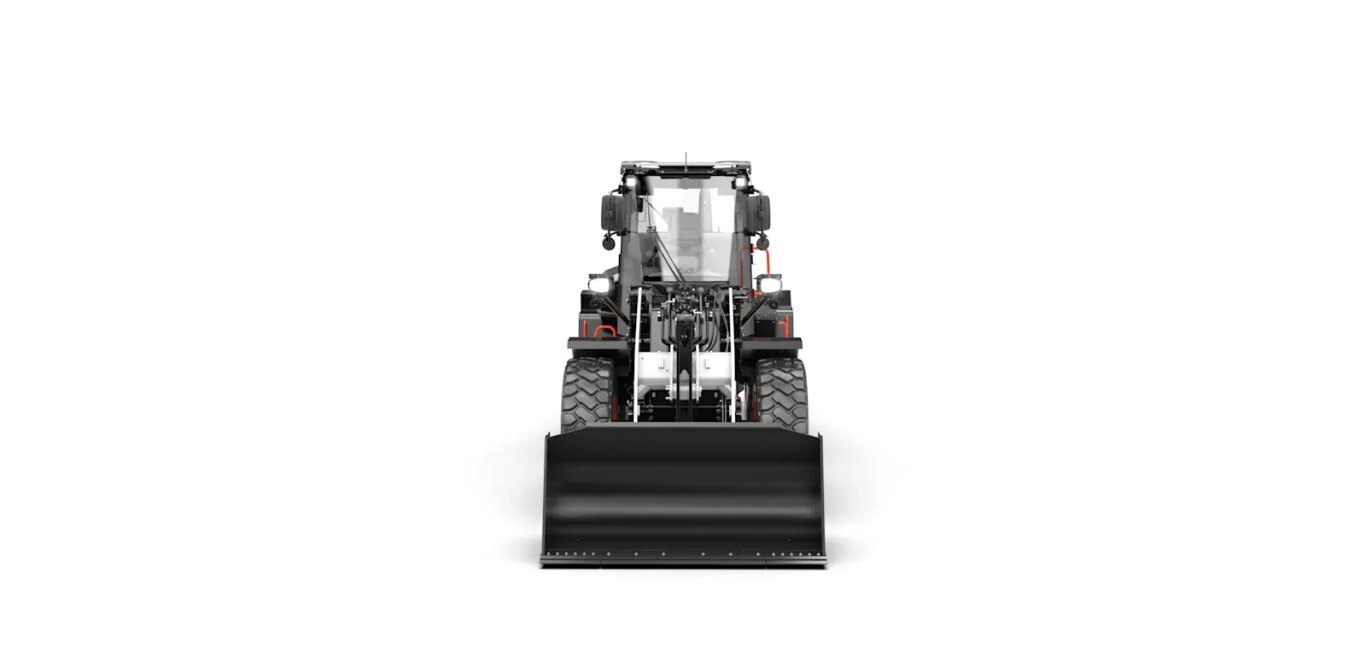

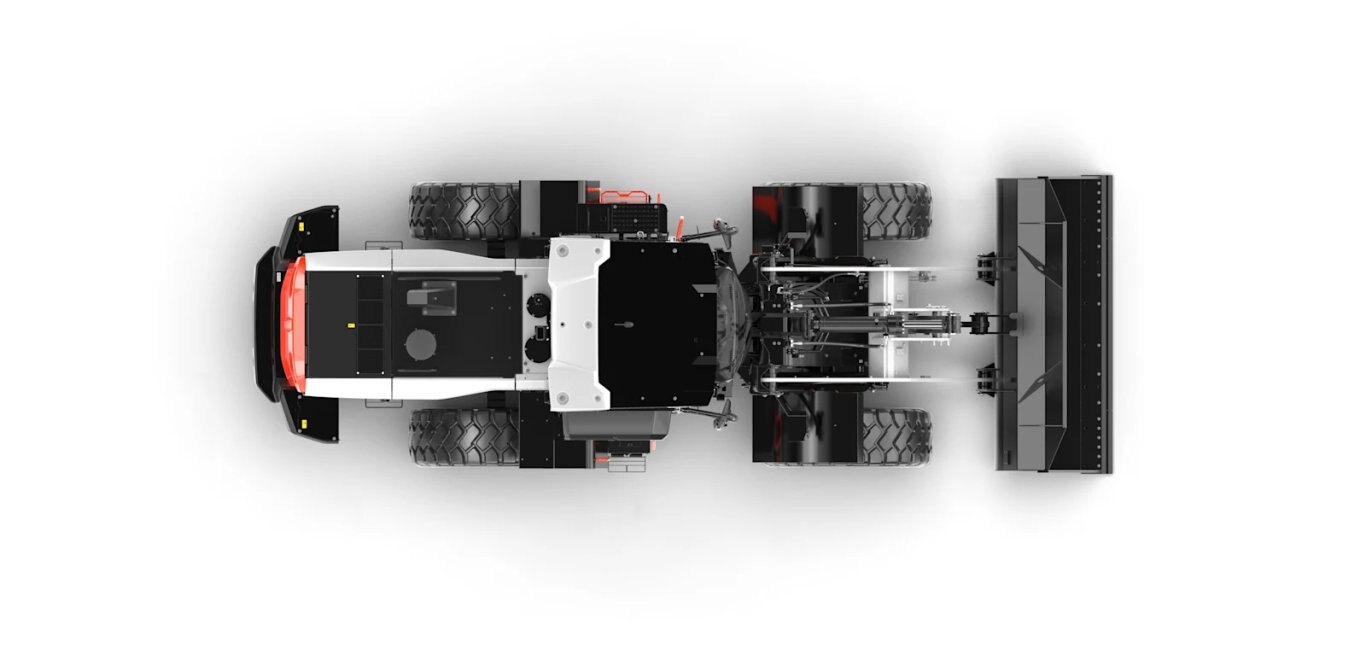

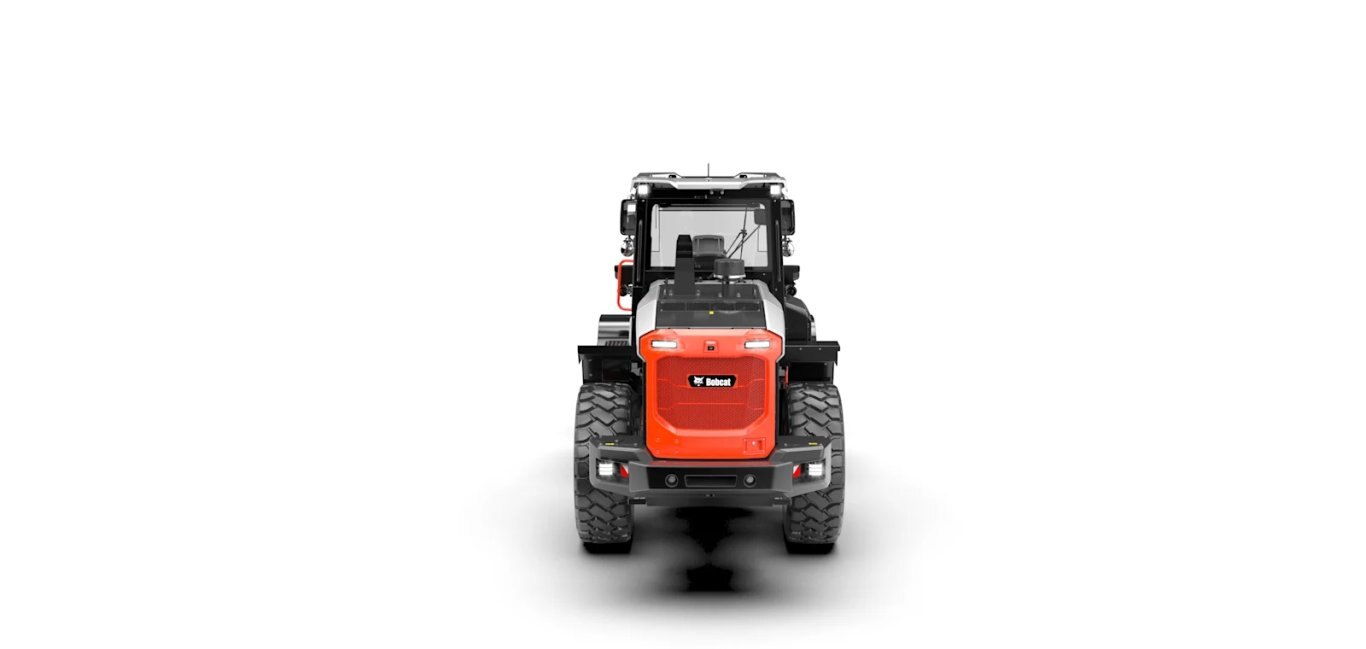

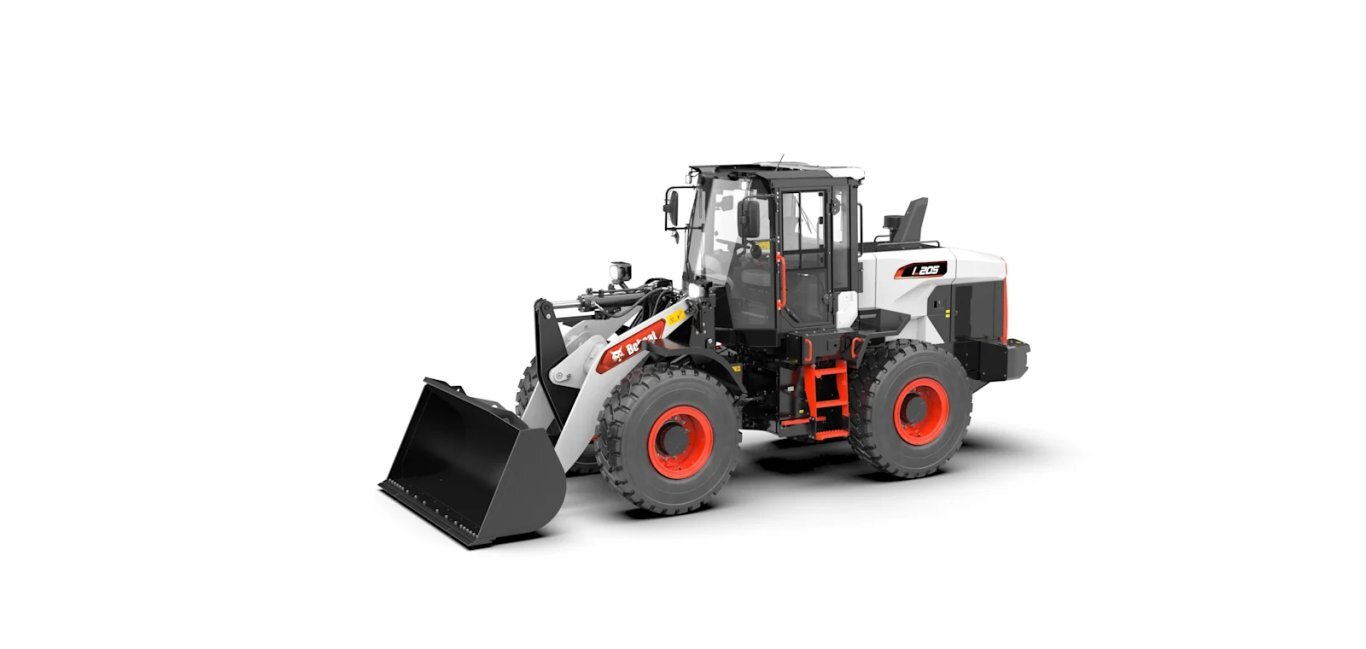

The Bobcat® L205 large wheel loader brings large-scale lifting performance and ultimate operator comfort to big material handling jobs.

  • Three power modes
  • 8-inch touch display
  • Quick coupler ready
  • 3-year/5,000-hour standard warranty
  • Travel speeds up to 23.6 mph
  • Three power modes help you customize performance to match the job and manage fuel economy
  • Proven Bobcat durability and a 3-year/5,000-hour full-coverage warranty give you peace of mind
  • A roomy, comfortable operator environment features low noise, excellent visibility and intuitive controls to help make every hour of work more productive
Specifications
Model
L205
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
l205 key specifications
Horsepower
142 hp
Operating Weight
27274 lbs
engine
Horsepower
142 hp
performance
Operating Weight
27274 lbs
Bucket Capacities
2.5-4.0 yd3 (1.9-3.0 m3)
Max. Travel Speed – Forward
23.6 mph
Max. Travel Speed – Reverse
12.4 mph
Tipping Capacity With Bucket (Straight)
23070 lbs
Tipping Capacity With Bucket (Articulated)
20370 lbs
Rated Operating Capacity With Forks (Straight)
6754 lbs
Rated Operating Capacity With Bucket (Straight)
11535 lbs
Rated Operating Capacity With Forks (Articulated)
5874 lbs
Rated Operating Capacity With Bucket (Articulated)
10185 lbs
capacities
Fuel Tank
62.1 gal
Diesel Exhaust Fluid (DEF) Capacity
5 gal
hydraulic system
3rd Spool Pressure
4351 psi
Main Pump Pressure
3843 psi
3rd Spool Max. Flow Rate
40.9 gpm
Main Pump Max. Flow Rate
40.9 gpm
dimensions
Tire Size
20.5R25(L3)
Wheelbase
120 in
Wheel Tread
75.9 in
Rollback Angle
49 deg
Ground Clearance
17 in
Articulation Angle
40 deg
Width (over Tires)
99.6 in
Width (with Bucket)
100.4 in
Outside Turning Radius
211.2 in
Height With Operator Cab
130.3 in
Length Without Attachment
249.6 in
Height To Bucket Hinge Pin
147 in
Dump Angle @ Maximum Height
46 deg
Length With Standard Bucket
295.7 in
Inside Turning Radius With Bucket
231.2 in
drive system
Main Drive
Hydrostatic 4F/3R
