ID # 53059973

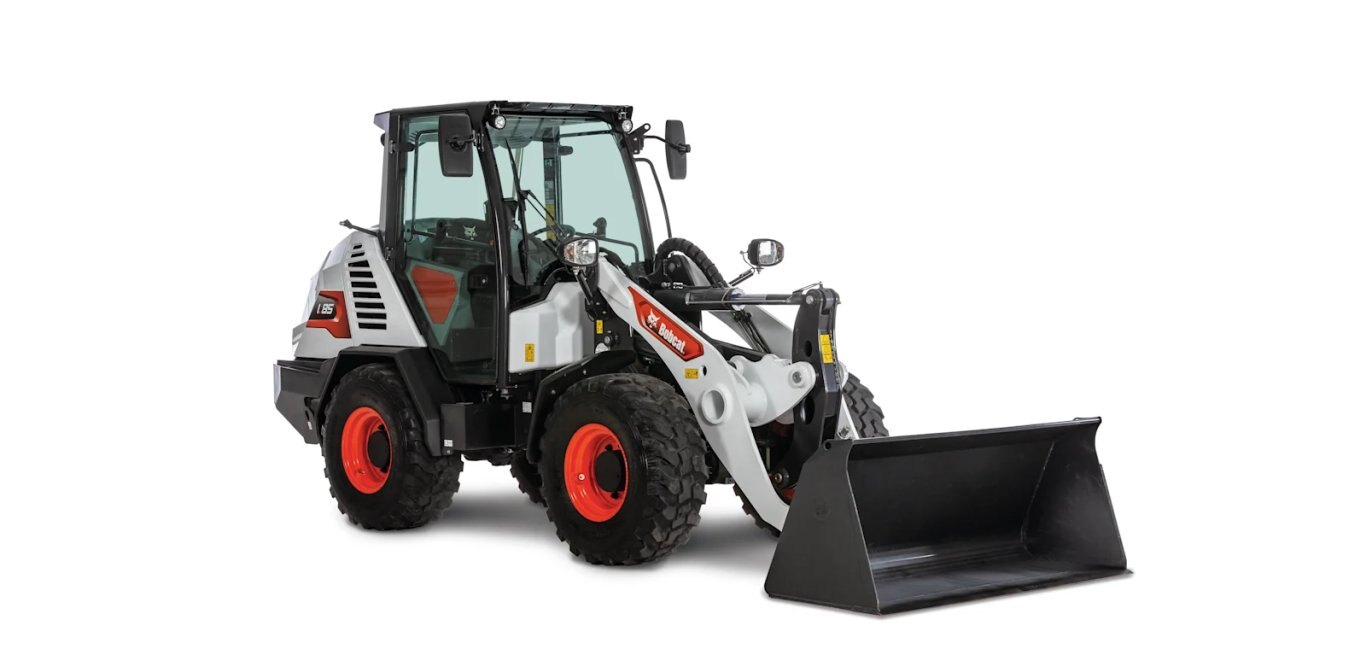

Bobcat L85 Compact Wheel Loader
Call for Price
Overview
Specifications
l85 key specifications
engine
performance
capacities
hydraulic system
dimensions
drive system
literature
Documents
Compact Wheel Loader
|
| If you have the will, the Bobcat® L85 compact wheel loader will provide the way with leading performance, maneuverability and versatility. With a high lift height and standard bucket capacities of up to 1-cubic yard, the L85 compact wheel loader excels at material-handling jobs and many other applications. |
Model
L85
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
Horsepower
68 hp
Operating Weight
11164 lbs
Auxiliary Std Flow
19.9 gpm
Travel Speed - Low
4.8 mph
Width (over Tires)
70.9 in
Travel Speed - High
16.3 mph
Rated Operating Capacity With Forks (Straight)
4786 lbs
Rated Operating Capacity With Bucket (Straight)
3974 lbs
Rated Operating Capacity With Forks (Articulated)
3977 lbs
Rated Operating Capacity With Bucket (Articulated)
3257 lbs
Horsepower
68 hp
Turbocharged Engine
Operating Weight
11164 lbs
Bucket Capacities
1.0-1.6 yd3
Travel Speed - Low
4.8 mph
Travel Speed - High
16.3 mph
Tipping Capacity With Forks (Straight)
5981 lbs
Tipping Capacity With Bucket (Straight)
3974 lbs
Tipping Capacity With Forks (Articulated)
3977 lbs
Tipping Capacity With Bucket (Articulated)
6514.7 lbs
Rated Operating Capacity With Forks (Straight)
5981 lbs
Rated Operating Capacity With Bucket (Straight)
3974 lbs
Rated Operating Capacity With Forks (Articulated)
3977 lbs
Rated Operating Capacity With Bucket (Articulated)
3257 lbs
Fuel Tank
20.8 gal
Auxiliary Std Flow
19.9 gpm
Auxiliary High Flow
27.3 gpm
Tire Size
405/70 R18
Wheelbase
82.7 in
Wheel Tread
54.8 in
Rollback Angle
50 deg
Ground Clearance
12.3 in
Oscillation Angle
8 deg
Articulation Angle
40 deg
Width (over Tires)
70.9 in
Width (with Bucket)
74.8 in
Height With Operator Cab
98.3 in
Length Without Attachment
193.1 in
Dump Angle @ Maximum Height
45 deg
Length With Standard Bucket
220 in
Drive Type
Two-speed hydrostatic with Advanced Attachment Control
Literature
| Name | Link |
| Download Brochure | Download |
