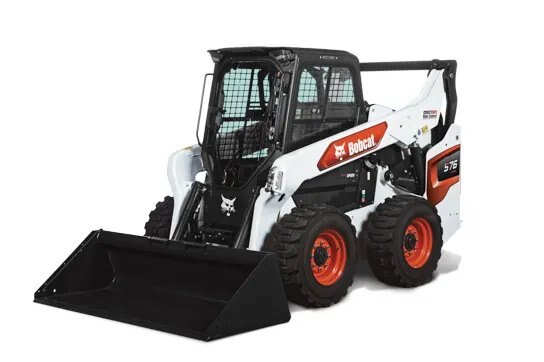

Bobcat S76 Skid-Steer Loader

  • Bobcat S76 Skid Steer Loader
  • Bobcat S76 Skid Steer Loader
  • Bobcat S76 Skid Steer Loader
  • Bobcat S76 Skid Steer Loader
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Skid-Steer Loader

We invented the skid-steer loader and the S76 embodies all that sets us apart – high performance, durability and unmatched comfort features that keep you productive. With power to spare and exceptional maneuverability, the S76 makes light work of the most challenging jobsite tasks.

  • Operator-friendly controls
  • The ultimate jobsite vantage point
  • Premium comfort
  • Advanced display technology
  • The powerful non-DPF engine and durable direct-drive system provide the performance you need while reducing and simplifying routine maintenance. The inline engine and durable direct-drive system deliver the performance and durability needed on today’s jobsites.
  • The high-efficiency hydraulic system delivers more power matched to demand and leading breakout forces. Push it hard, knowing it will stay cool while tackling your most challenging work in all weather conditions.
  • Fingertip controls make your attachment operations easy, precise and comfortable with simple adjustments on the go.



Specifications
Model
S76
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
s76 key specifications
Horsepower
74 hp
Joystick Control
Optional
Operating Weight
8615 lbs
Auxiliary Std Flow
23.3 gpm
Auxiliary High Flow
30.3 gpm
Rated Operating Capacity (ISO)
2900 lbs
engine
Horsepower
74 hp
Horsepower Management
Included with SJC Option
performance
Tipping Load
5800 lbs
Travel Speed
6.8 mph
Operating Weight
8615 lbs
Travel Speed (2-speed Option)
11.8 mph
Rated Operating Capacity (ISO)
2900 lbs
Rated Operating Capacity 200 Lb. Counterweight
3050 lbs
Rated Operating Capacity 300 Lb. Counterweight
3100 lbs
capacities
Fuel Tank
31.7 gal
hydraulic system
Auxiliary Std Flow
465 v
Auxiliary High Flow
30.3 gpm
System Relief @ Quick Couplers
3500 psi
Hydraulic System Pressure (Standard And High Flow)
3500 psi
dimensions
Width
72 in
Height
81.8 in
Length
141.9 in
Wheelbase
48.3 in
Turning Radius
87.7 in
Width (with Bucket)
74 in
Reach @ Maximum Height
33.5 in
Height With Operator Cab
81.8 in
Length Without Attachment
113.9 in
Height To Bucket Hinge Pin
128.3 in
Length With Standard Bucket
147.1 in
