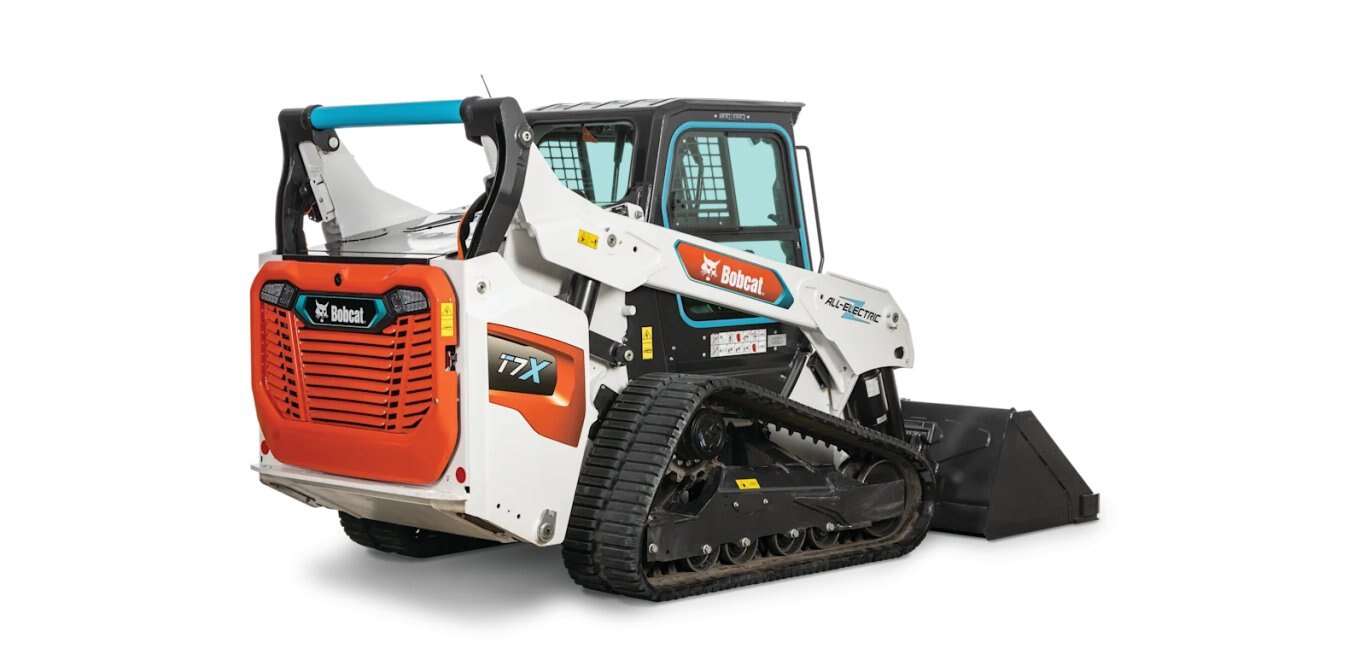

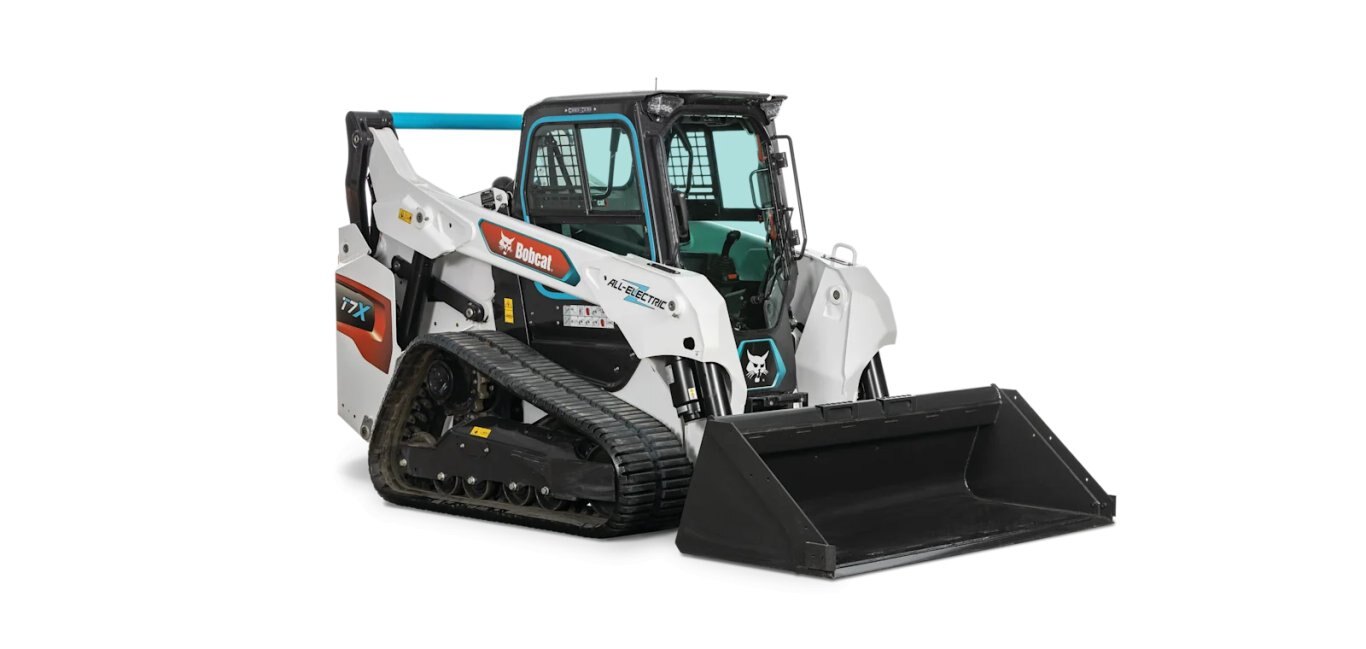

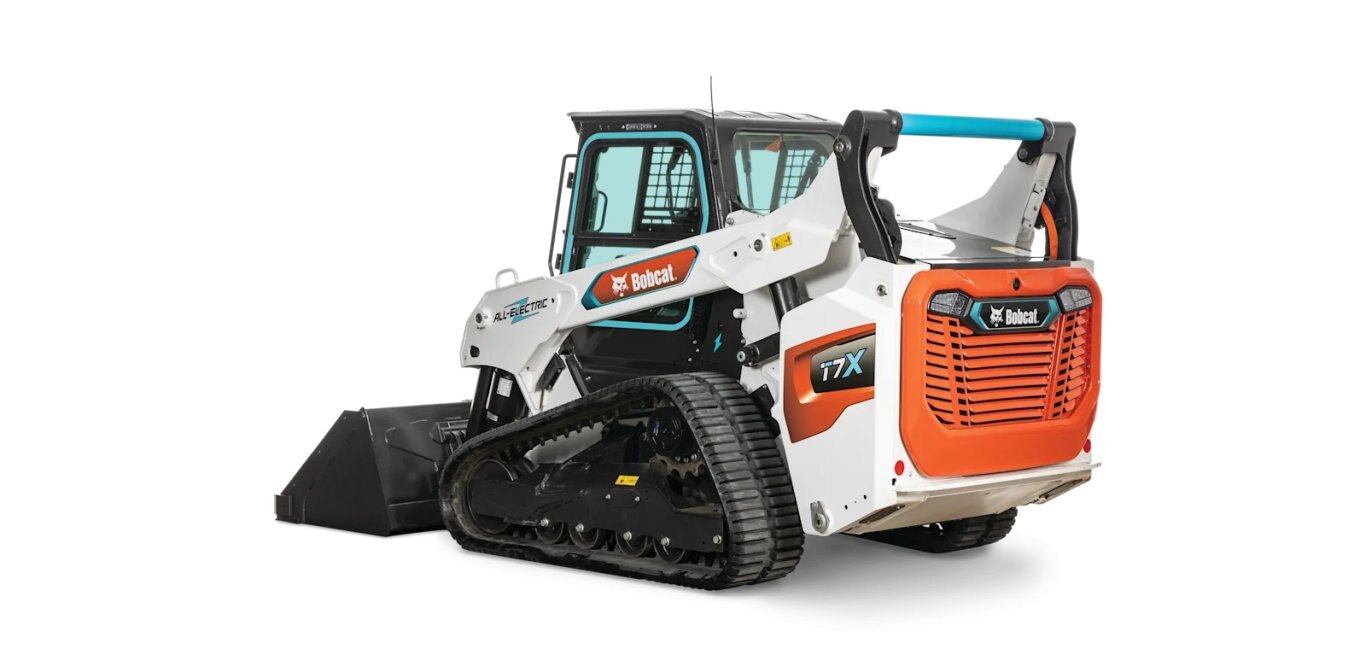

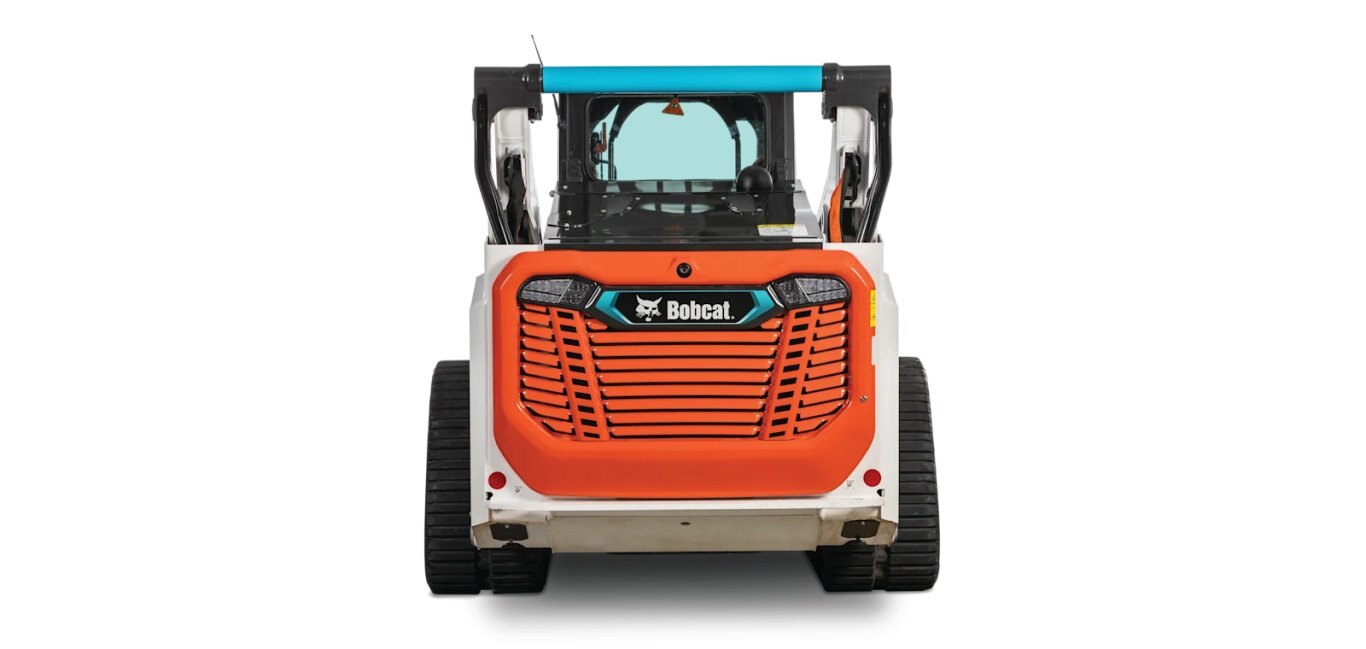

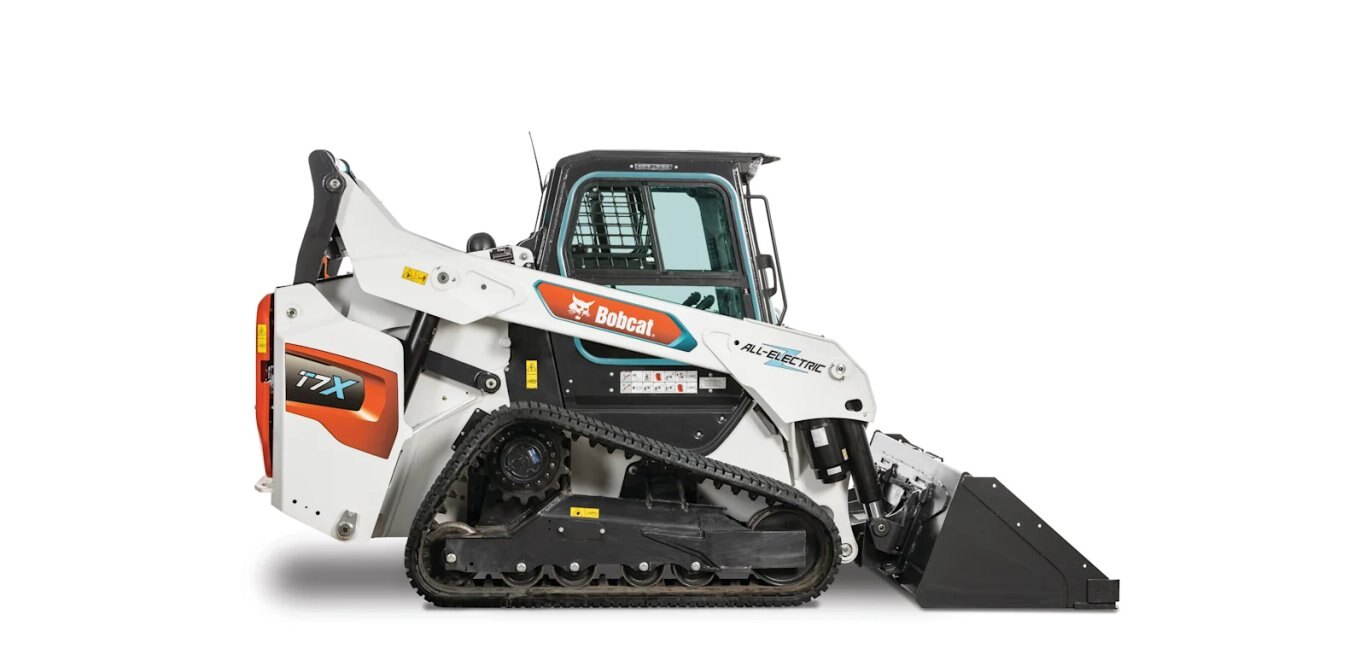

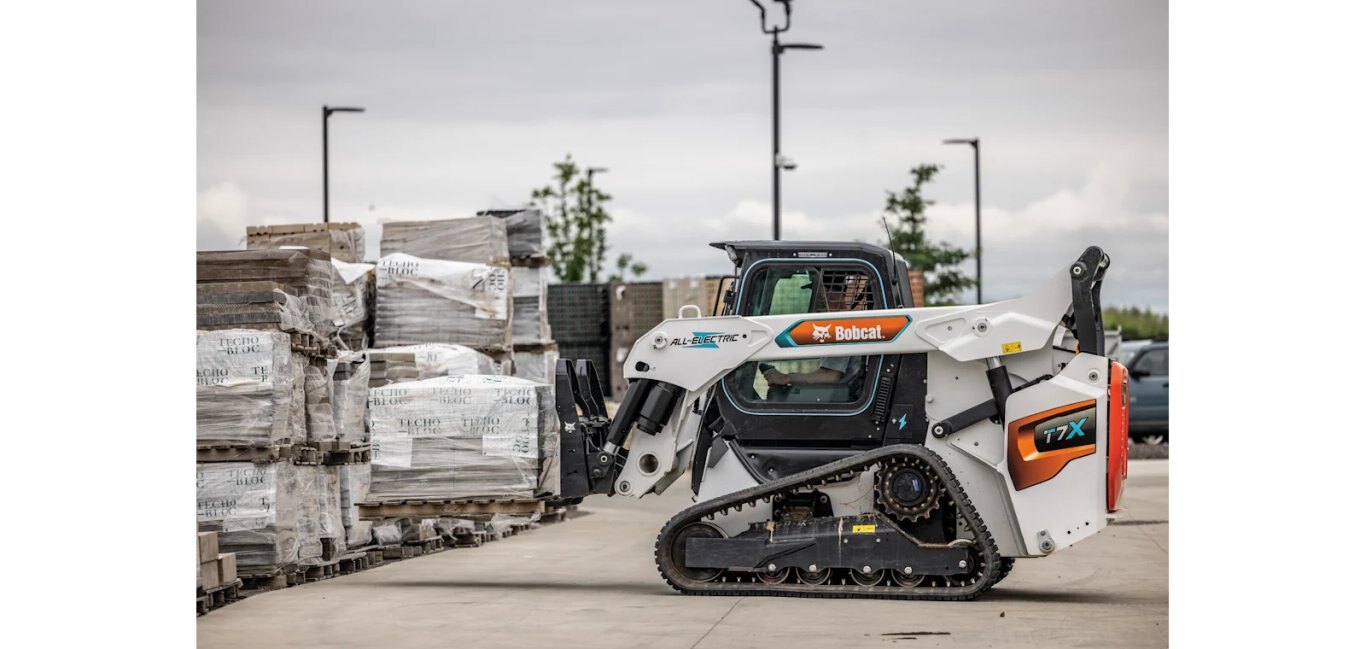

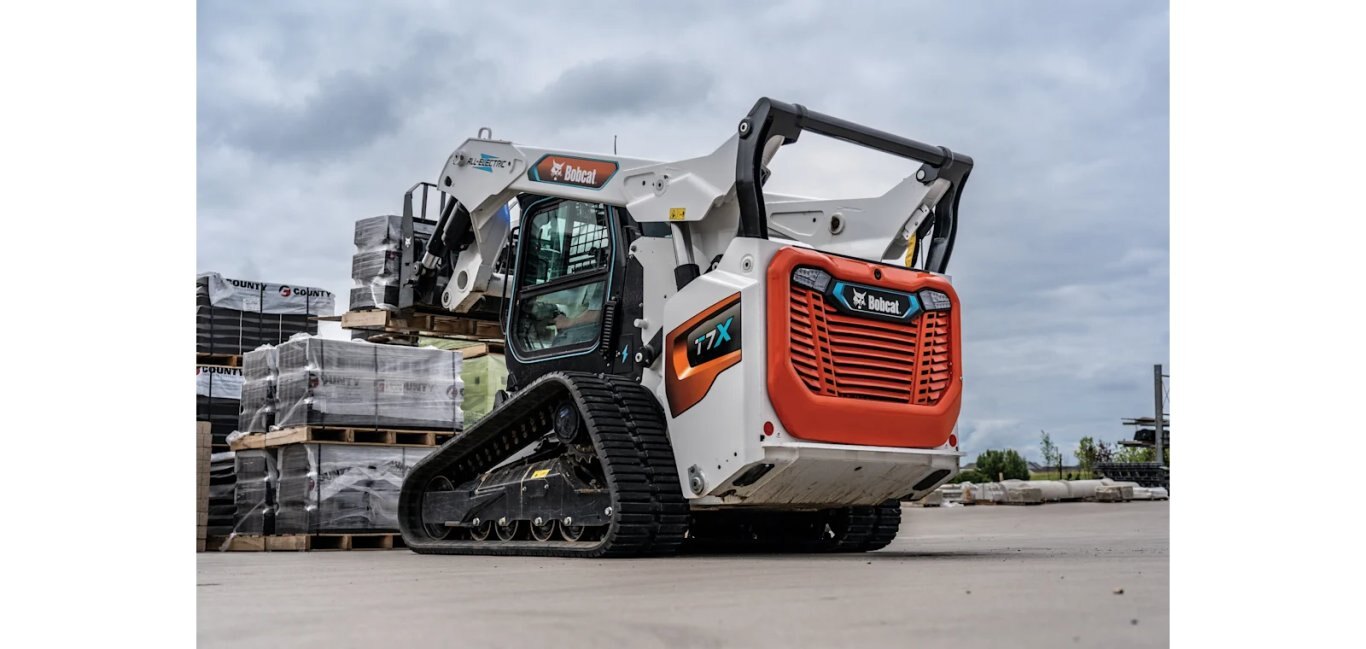

Bobcat T7X Compact Track Loader
Call for Price
Overview
Specifications
t7x key specifications
engine
performance
capacities
electrical system
literature
Documents

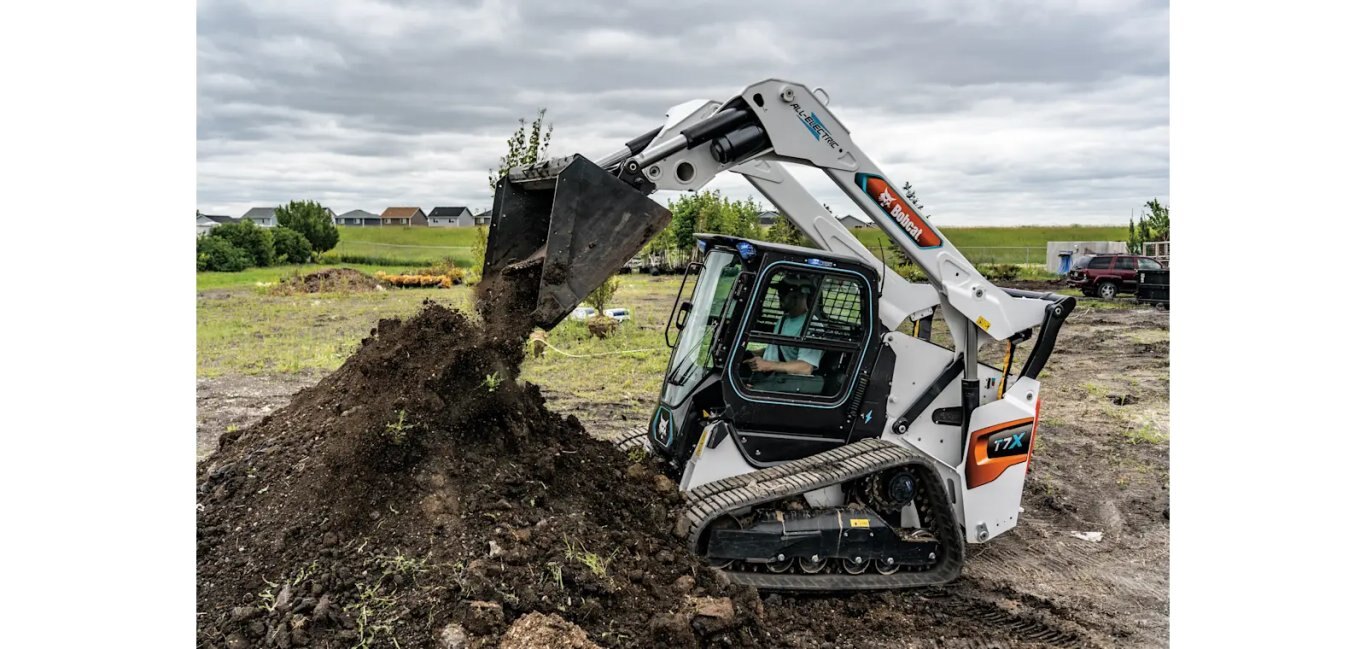

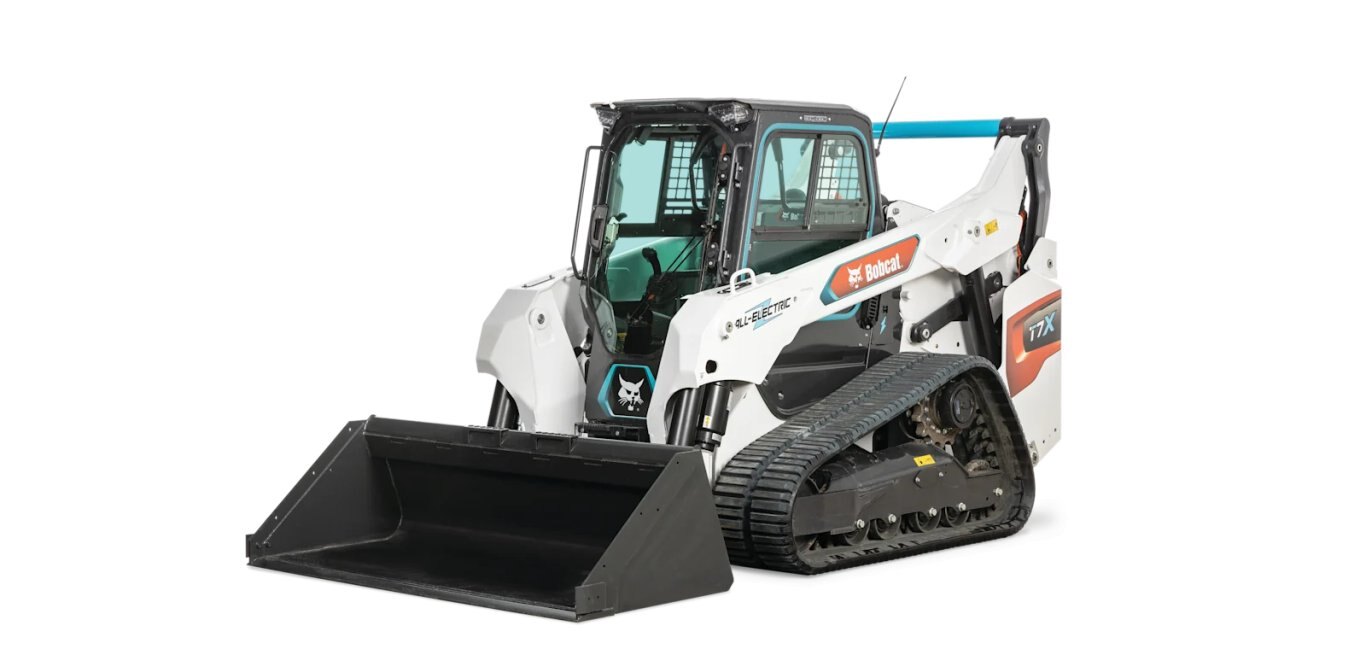

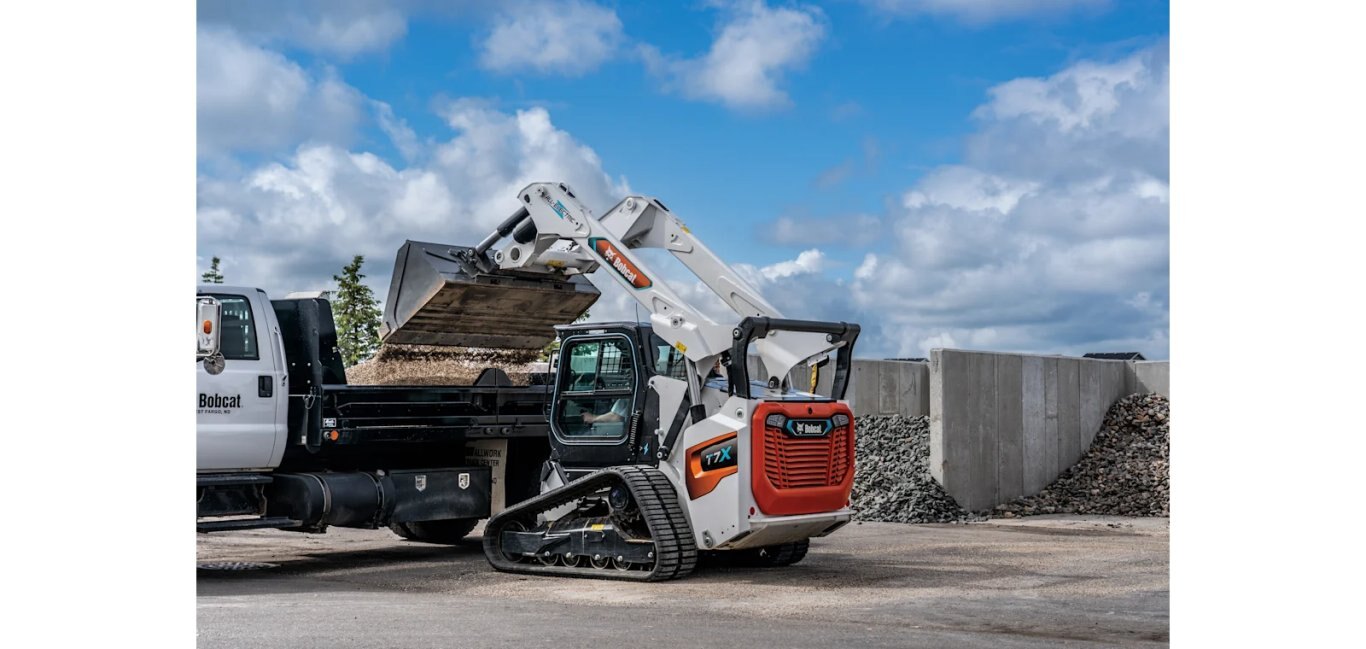

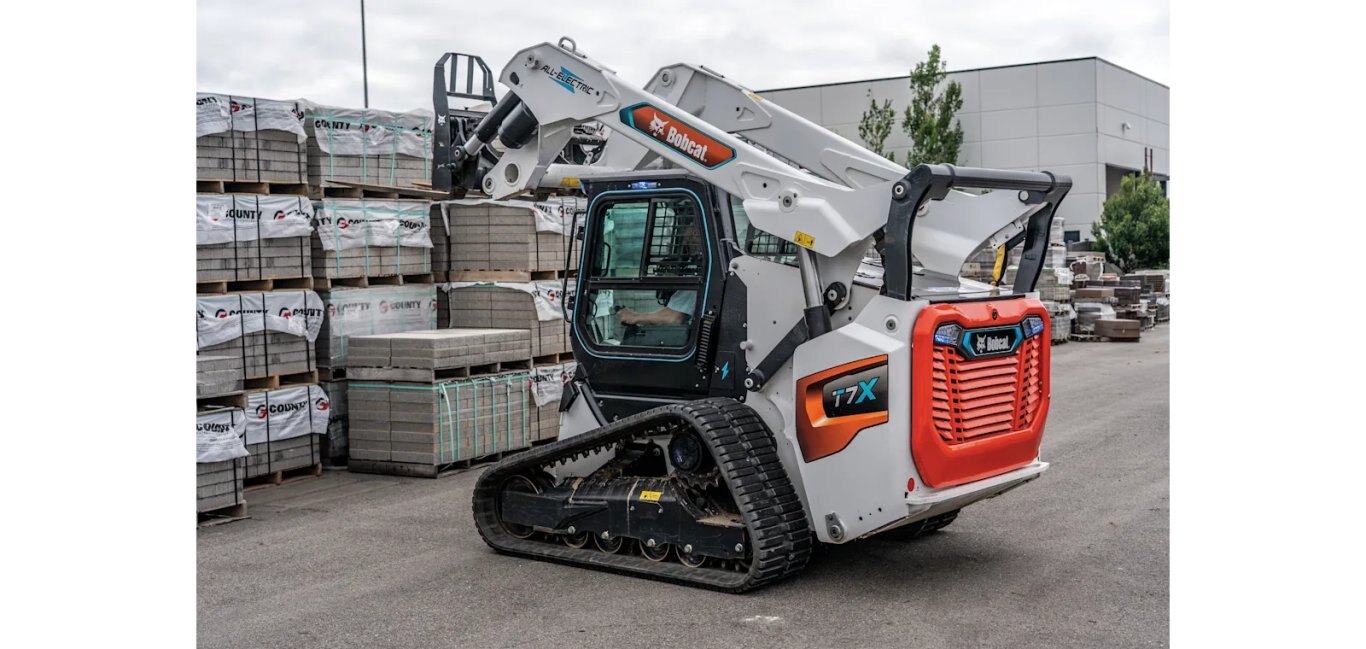

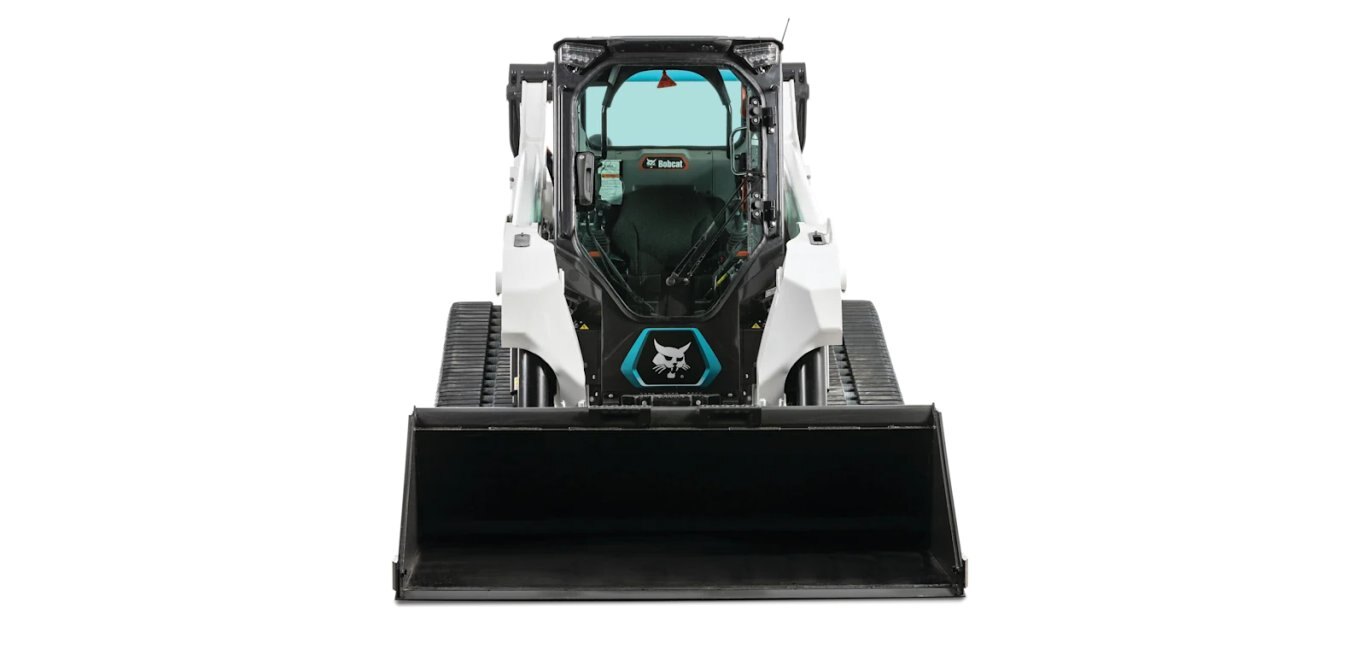

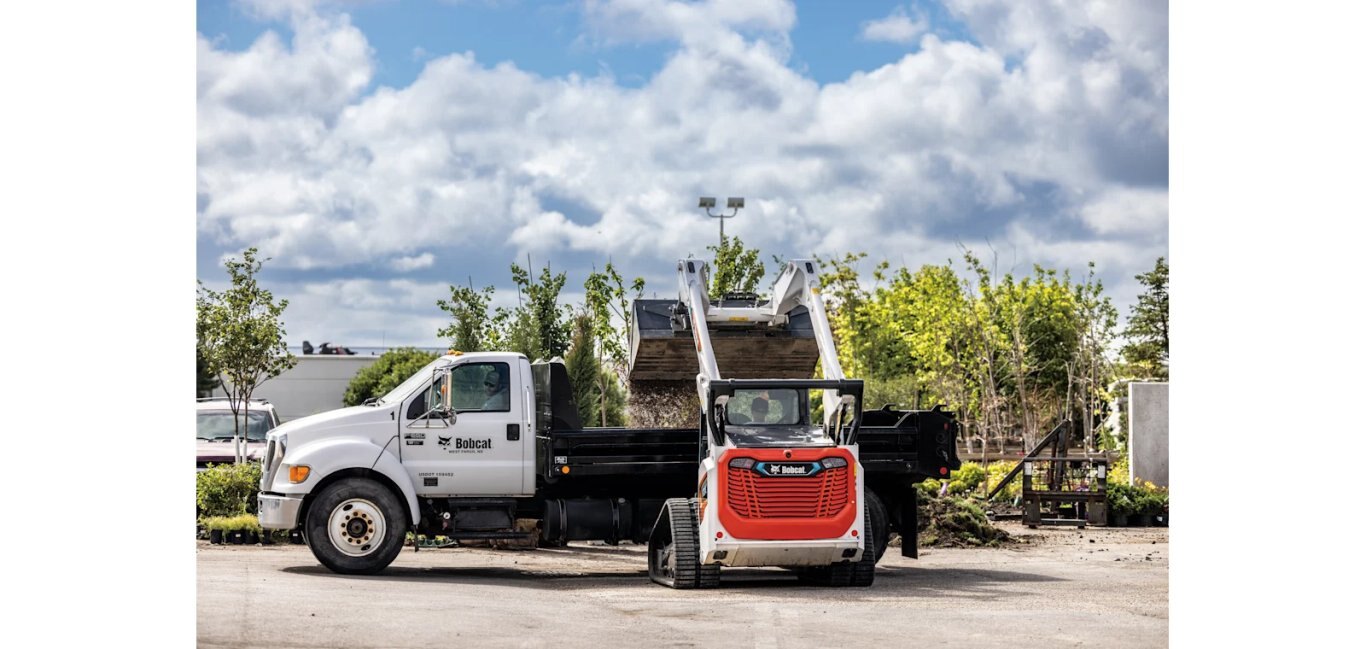

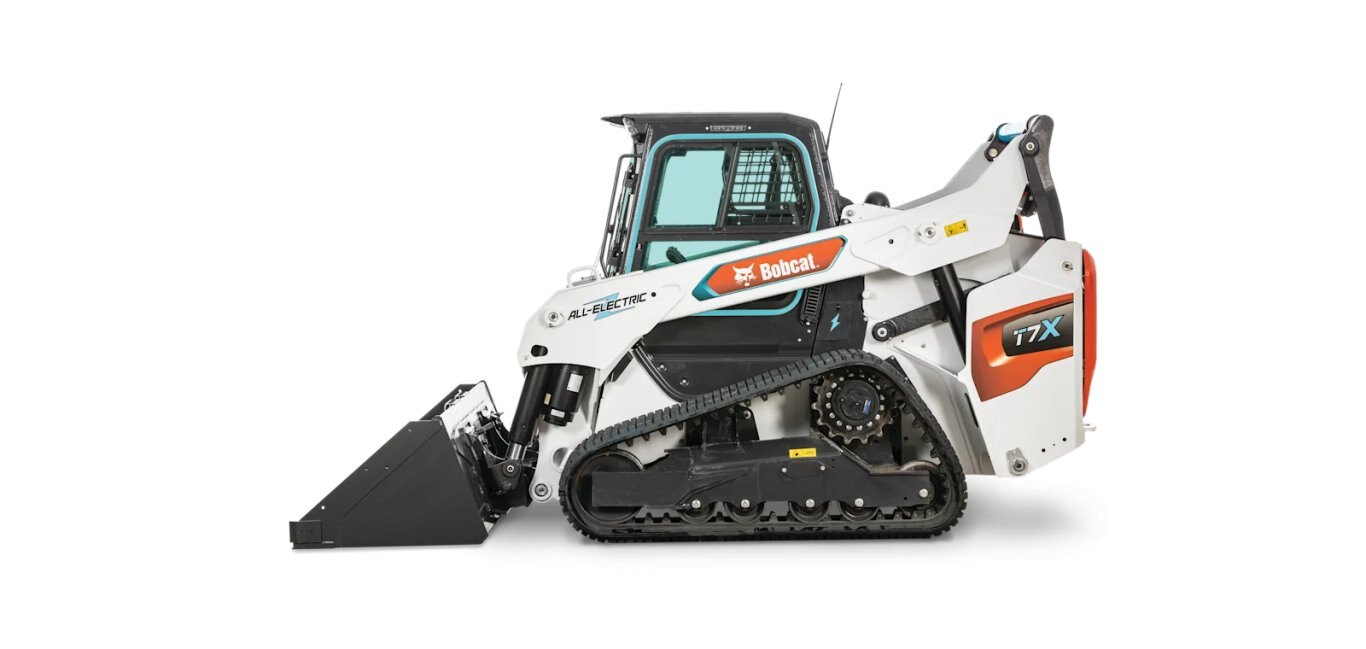

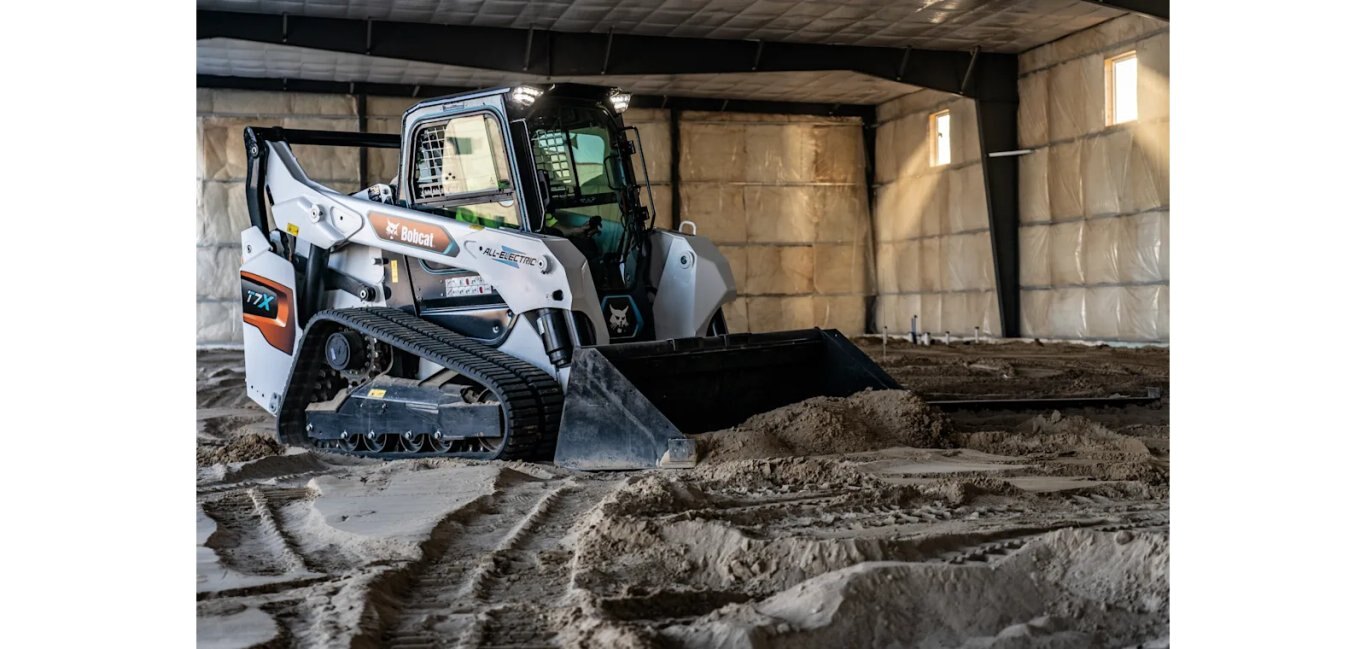

Compact Track LoaderThe award-winning Bobcat® T7X is the world’s first all-electric compact track loader. With jaw-dropping torque and cutting-edge design, this emissions-free powerhouse delivers the benefits of owning and operating a battery-powered compact loader without sacrificing performance.
|
|
Model
T7X
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
Horsepower
100 hp
Battery Type
Lithium Ion
System Voltage
465 v
Operating Weight
12590 lbs
Rated Operating Capacity (ISO)
3056 lbs
Horsepower
100 hp
Tipping Load
8743 lbs
Travel Speed
5.7 mph
Operating Weight
12590 lbs
Travel Speed - High
8.7 mph
Ground Pressure (Rubber)
5.2 psi
Rated Operating Capacity (ISO)
3056 lbs
Bystander Noise Level Per ISO 6395
92.7 db
Rated Operating Capacity (35% Of Tip)
3056 lbs
Operator Position Noise Level Per ISO 6396/ISO 4871
65.4 db
Breakout Force - Lift - Machine Limitation (hyd/tip)
8118 lbs
Breakout Force - Tilt - Machine Limitation (hyd/tip)
8218 lbs
Drive Motor Brake Cavity (Each)
1 qt
Air Conditioning Refrigerant (R-134a)
2 lbs
Electronics Coolant (Environmentally Friendly Propylene Glycol)
10 qt
Motor Type
Permanent Magnet (Brushless)
Battery Type
Lithium Ion
System Voltage
465 v
Literature
| Name | Link |
| Download Brochure | Download |
