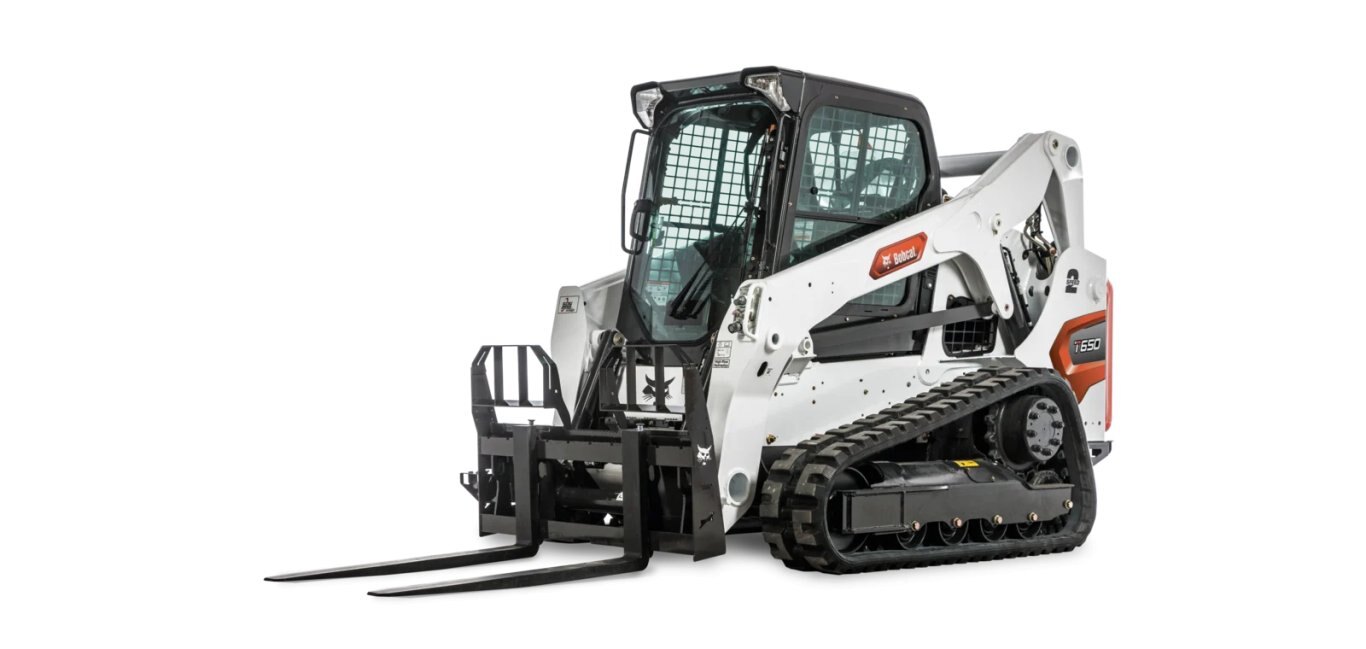

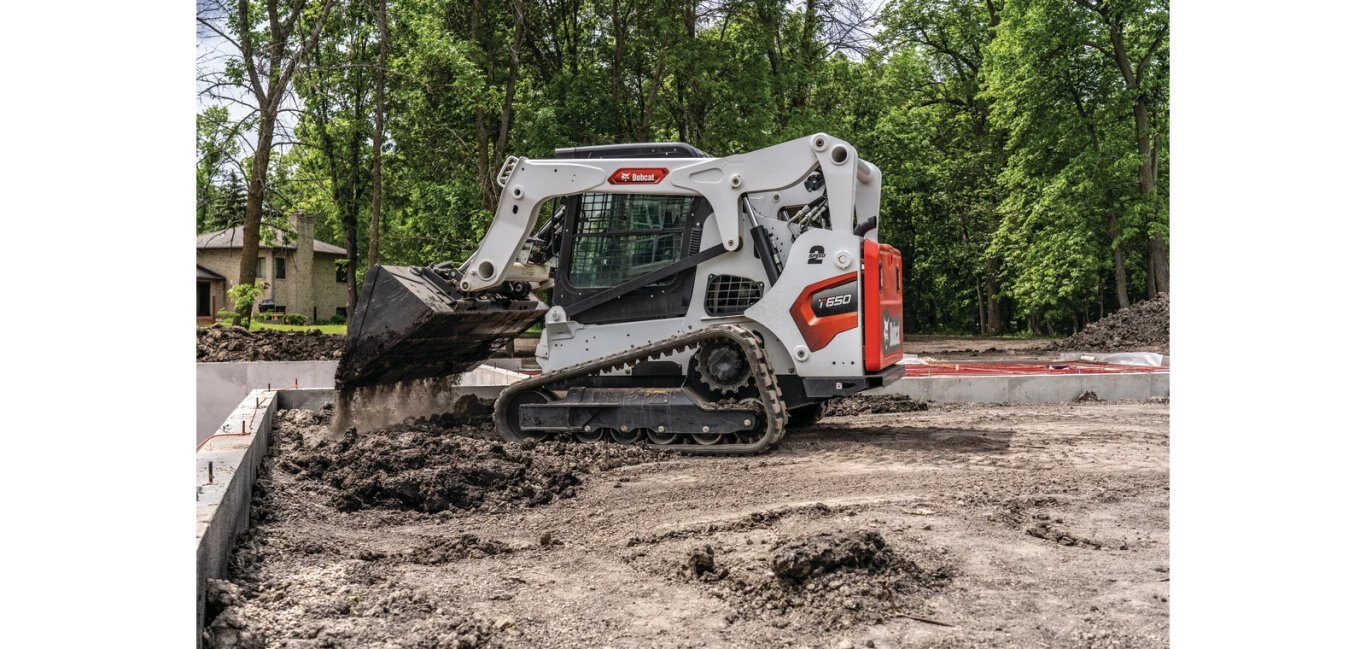

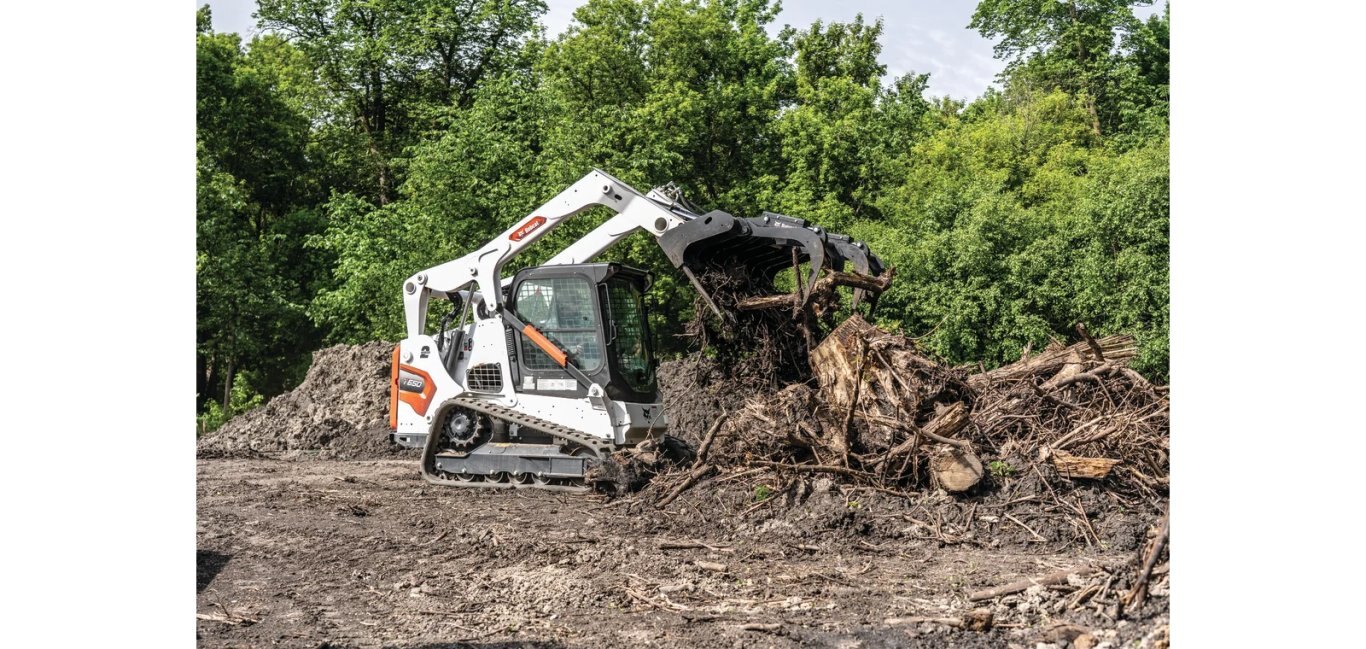

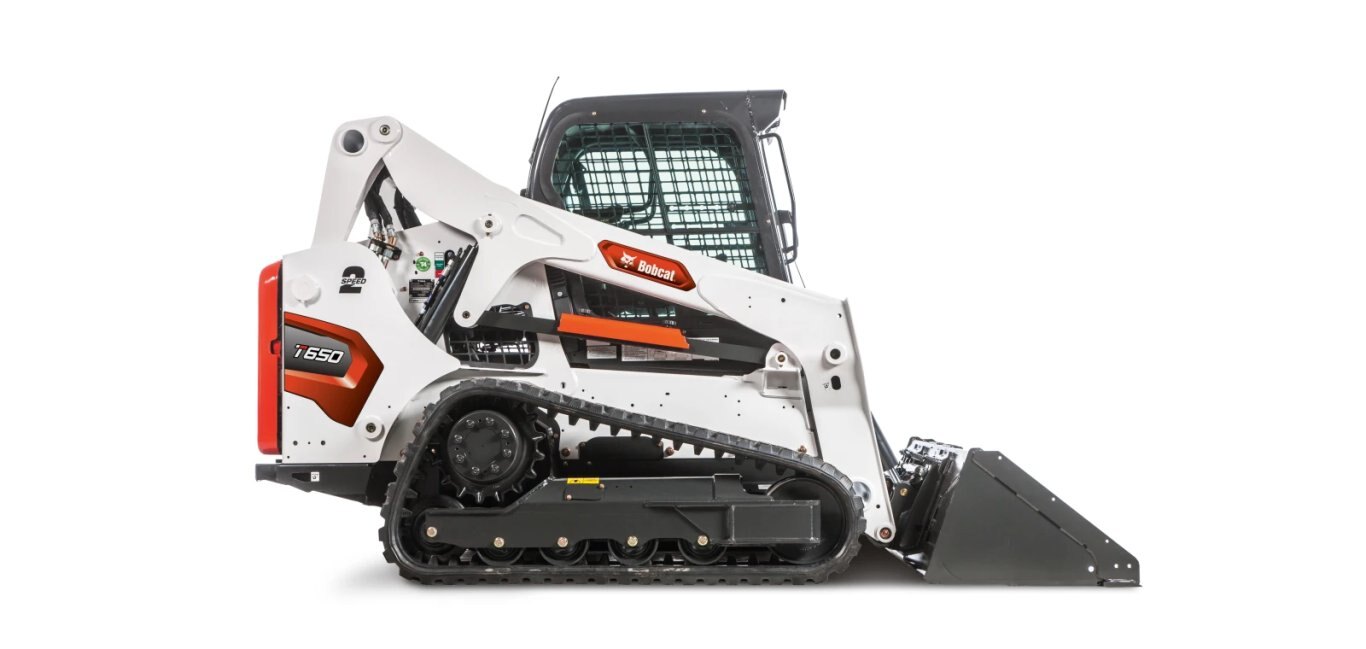

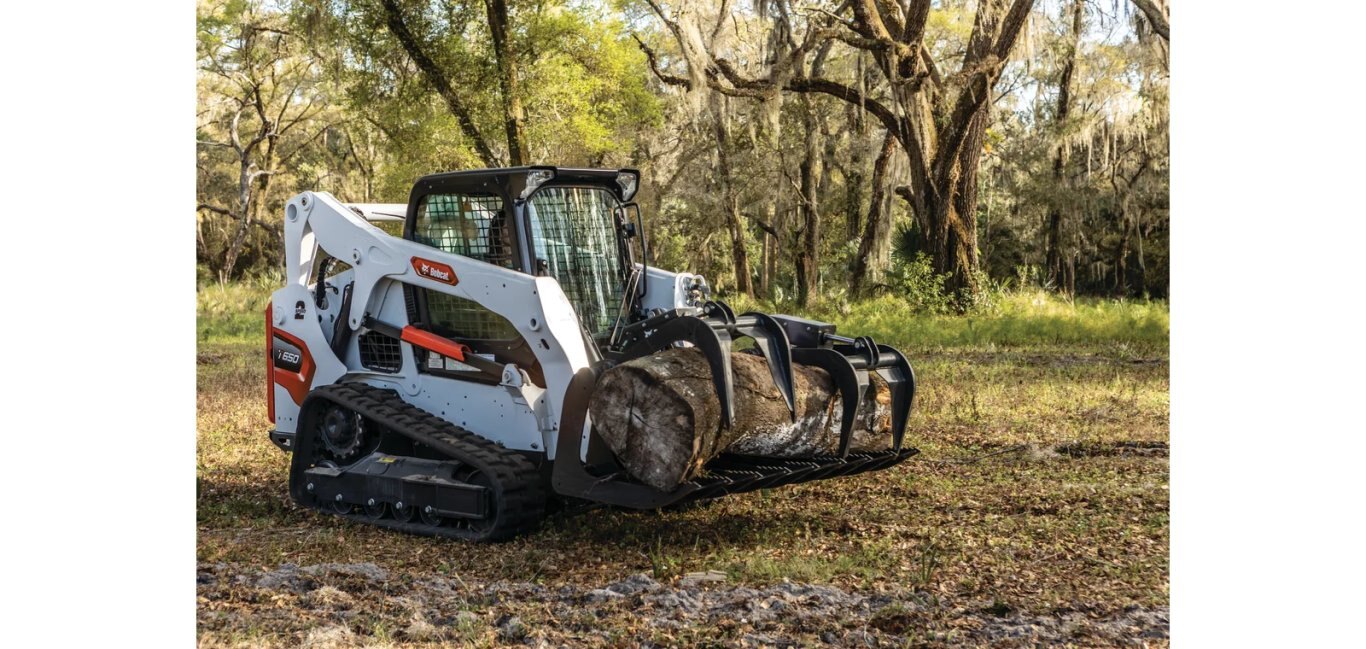

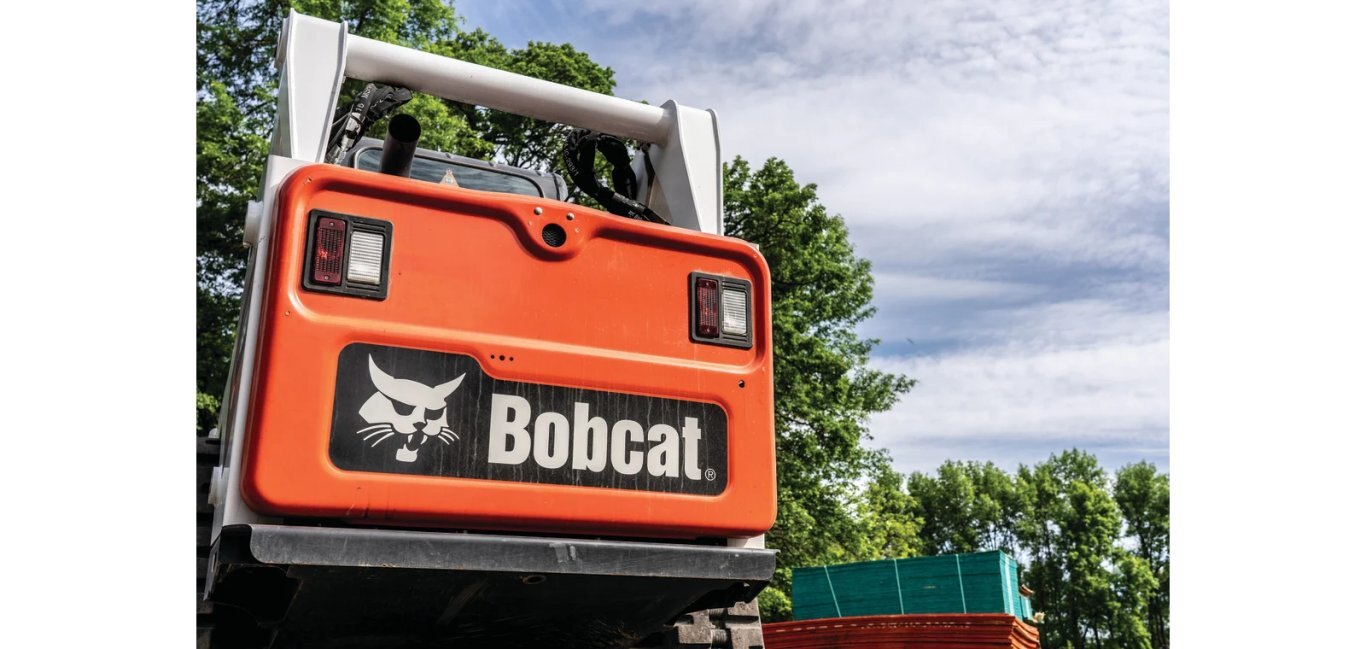

Bobcat T650 Compact Track Loader
Call for Price
Overview
Specifications
t650 key specifications
engine
performance
capacities
hydraulic system
dimension
literature
Videos
Documents
Compact Track LoaderA legend among owners and operators, the T650 offers proven performance with simplified options and configurations. It’s a time-tested and high-performing compact track loader with practical features and pricing to match.
|
|
Model
T650
Category Name
Skid Steer
Year
2025
Sale Type
New
Manufacturer
Bobcat
Joystick Control
Optional
Operating Weight
9113 lbs
Auxiliary Std Flow
23 gpm
Ground Pressure (Rubber)
5.7 psi
Rated Operating Capacity (ISO)
2570 lbs
Horsepower
74 hp
Turbocharged Engine
Tipping Load
7343 lbs
Travel Speed
6.2 mph
Operating Weight
9113 lbs
Ground Pressure (Rubber)
5.7 psi
Travel Speed (2-speed Option)
8.7 mph
Rated Operating Capacity (ISO)
2570 lbs
Operating Capacity (50% Of Tip)
3670 lbs
Fuel Tank
43.9 gal
Auxiliary Std Flow
23 gpm
System Relief @ Quick Couplers
3500 psi
Width
72.9 in
Track Width
12.6 in
Reach @ Maximum Height
36 in
Height With Operator Cab
81.3 in
Length Of Track On Ground
57.7 in
Length Without Attachment
108.4 in
Height To Bucket Hinge Pin
124 in
